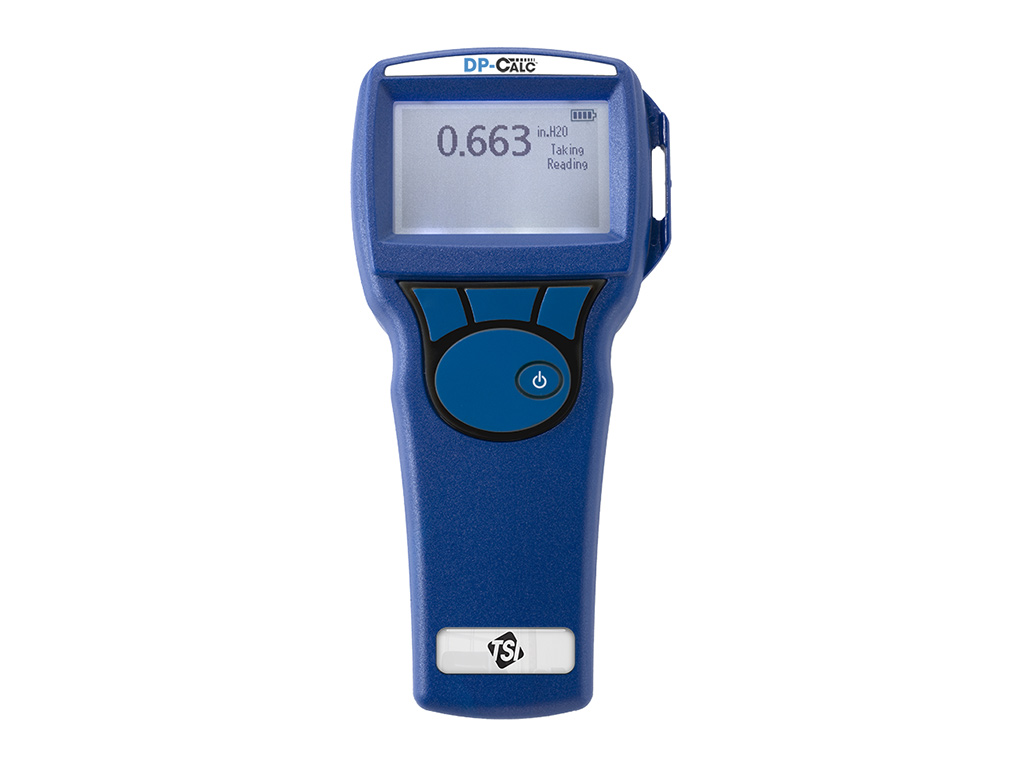

TSI 5815 DP-CALC Micromanometer

Static/Differential Pressure

Range: 1 -15 to +15 in. H2O ( -28.0 to +28.0 mm Hg, -3735 to +3735 Pa)

Accuracy ±1% of reading ±0.005 in. H2O (±0.01 mm Hg, ±1 Pa)

Resolution 0.001 in. H2O (0.1 Pa, 0.01 mm Hg)

Velocity (Pitot Tube)

Range: 2 250 to 15,500 ft/min (1.27 to 78.7 m/s)

Accuracy3 ±1.5% at 2,000 ft/min (10.16 m/s)

Resolution 1 ft/min (0.1 m/s)

Instrument Temperature

Range Operating 40 to 113°F (5 to 45°C)

Storage -4 to 140°F (-20 to 60°C)

External Meter Dimensions 3.3 in. x 7.0 in. x 1.8 in. (8.4 cm x 17.8 cm x 4.4 cm)

Meter Weight with Batteries 0.6 lbs. (0.27 kg)

Power Requirements Four AA-size batteries (5815)
