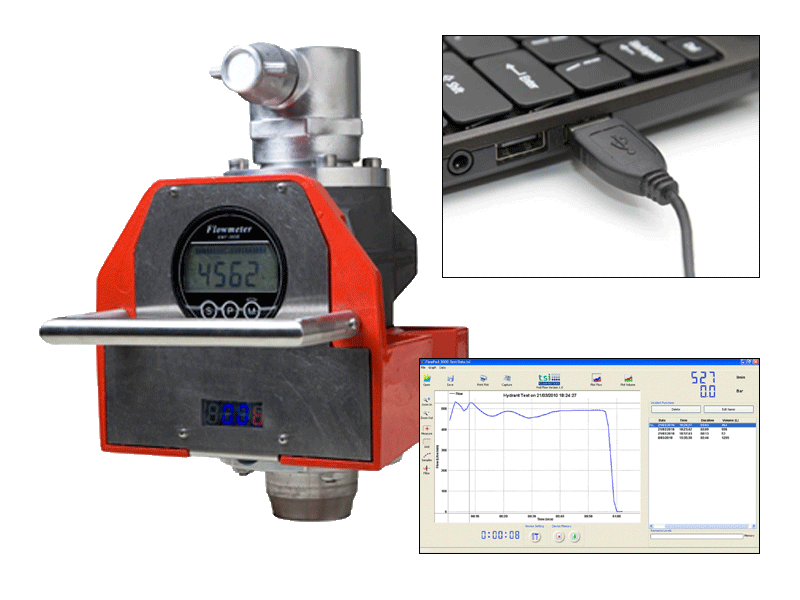

TSI Flowmeter Flowmaster 250 DL Portable flow & pressure test instrument

Manufacturer: TSI Flowmeter

Model: Flowmaster 250 DL

Part No.: 34-2005

Origin: Ireland

Warranty: 12 months

FLOWMETER

Type: Electromagnetic

Operating Range: 30 to 3,000 lpm, can be extended to 5,000 lpm

Accuracy: 30 to 750 lpm: ±15 lpm > 750 lpm: ± 2%

Power Supply: Internal battery 12V DC, 2.2 Ah

Up to 10 hours continuous operation External charging device included as standard. Mains charger is supplied with either UK, euro or USA style plug.

Operating temperature: -10 to +50 ºC

Weight: 12.5kg

Dimensions: 210 (H) x 240 (W) x 390 (L) mm

Housing: Solid and corrosion resistant LM25 aluminium

Colour: Red RAL 3020/natural aluminium

PRESSURE MEASUREMENT

Sensor: Piezoresistive pressure transducer

Range: 0-25bar in 0.1bar increments

Accuracy: ± 1%

Readout: High brightness LED

Readings in BAR or PSI

DATA LOGGER

Record 12 hours of flow and pressure data at 1 second recording interval

Upload data to laptop by USB

Auto logging feature whereby data logging starts and stops automatically according to flow rate

LED indication of logging in progress

Can also log directly to PC using USB cable supplied

PC SOFTWARE

FMSv4.5 software for file management and report preparation is supplied.
