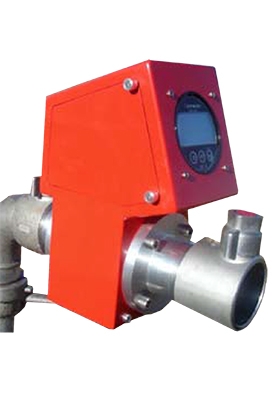

TSI Flowmeter Flowpod 3000 (34-2020) Portable flow & pressure test instrument

Manufacturer: TSI Flowmeter

Model: Flowpod 3000 (34-2020)

Part No.: 34-2020

Origin: Ireland

Warranty: 12 months

Weight: 7.7Kg including battery pack & installation adaptors

Dimensions: 340(L) x 155 (W) x 320 (H) mm

Power: Internal Battery Pack (NiMH) DC 12V @ 250Ma Battery charger included

Operating Temp: -10°C ~ +50°C.

Colour: Fireman Red & anodised aluminium

FLOWMETER

Type: Electromagnetic

Range: 30 – 3,000 lpm

Resolution: 50 ~ 750 l/m ± 15 l/min 750 l/min ~ ± 2%Casing Material: Corrosion resistant ADC6-12 (JIS) aluminium (anodised)

Pressure rating: 49 bar

Digital LCD display with internal backlight

Adaptors: 2.5″ BSP or BS Instantaneous Flowmeter Data Logger

DATA LOGGER

Internal data logger

64Kb memory capacity. Record 12 hours of data at one second interval

Record flow rate

Real time clock and data/time stamp added to each recorded event

USB connection to PC for settings and for recorded data transfer

Automatic trigger of logger by flow event

Art No 34-2104 With Pressure – Art No 34-2022

0 to 25 bar digital pressure transducer

Bright LED readout of pressure
