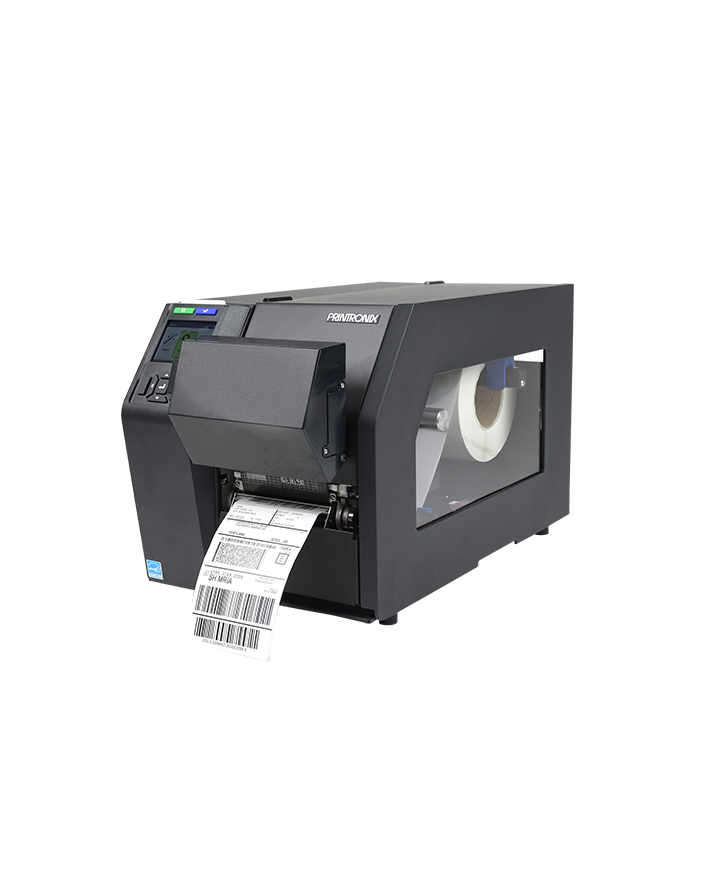

TSC T8304 ODV-2D Enterprise Industrial ODV-2D Printers (300 dpi, 203.2 mm/s, 512 MB RAM)

Hardware Specifications

Resolution: 300 dpi (12 dots/mm)

Print Method: Direct thermal/Thermal transfer

Display: Color LCD with buttons

Hardwire Connectivity: Ethernet, GPIO, Parallel port, Serial RS-232, USB

Wireless Connectivity: Wi-Fi

Enterprise Printer Management: PrintNet Enterprise; SOTI Connect (license required)

Type: Verifier

Max. Print Speed: 8 ips (203.2 mm/s) @ 200 dpi, 8 ips (203.2 mm/s) @ 300 dpi

Max. Print Width: 4.1" (104mm)

RAM: 512 MB RAM

Flash: 128 MB

Optional Cutter: Full-Cut; Patrial-Cut; High-Speed; Garment

Media Specifications

Max. Media Width: 4.5" (114.3 mm)

Media Type: Gap; Mark; Advanced Gap; Advanced Notch

Max. Ribbon Length: 625 Meters

Media Core Diameter: 1.5" to 3.0" (37.5 - 76 mm)

Min. Label Length: 0.25"(6.35 mm)/1.0"(25.4 mm) continuous/tear-off; 0.5"(12.7 mm) peel-off

Construction: Die-cast aluminum frame and print mechanism; steel cover; large clear media view window

Programming Languages: Most Major Printer Language
