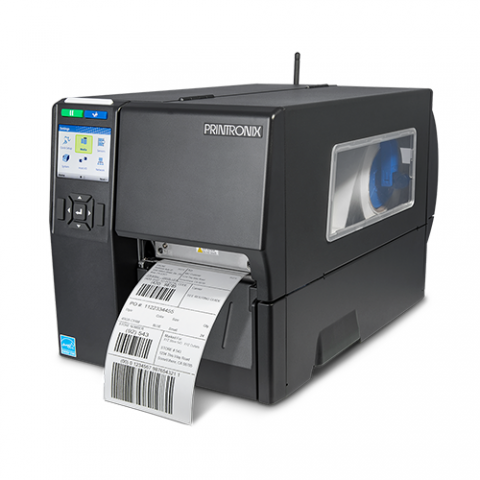

TSC T4304 Thermal/RFID Printer (300 dpi, 178 mm/s, 128 MB)

Hardware Specifications

Resolution: 300 dpi (12 dots/mm)

Print Method: Direct thermal/Thermal transfer

Display: Color LCD with buttons

Hardwire Connectivity: Ethernet, Serial RS-232, USB

Wireless Connectivity: Bluetooth, Wi-Fi

Enterprise Printer Management: PrintNet Enterprise; SOTI Connect (license required)

Type: Industrial

Max. Print Speed: Up to 10 ips (178 mm/s) @ 300 dpi

Max. Print Width: 4.1" (104mm)

RAM: 128 MB

Flash: 128 MB

Expandable Flash: SD memory card reader; up to 32 GB

Media Specifications

Max. Media Width: 4.72" (120 mm)

Media Type: Continuous Roll, Die-Cut, Fan-Fold

Max. Ribbon Length: 450 Meters

Ribbon Width: 4.3" (110 mm)

Media Core Diameter: 1" (25.4 mm) to 3" (76.2 mm)

Min. Label Length: 0.25" Continuous; 1" Tear-Off/Peel/Cutter

Construction: Rugged metal enclosure with bi-fold side panel

Programming Languages: Support for 9 competitive printer languages
