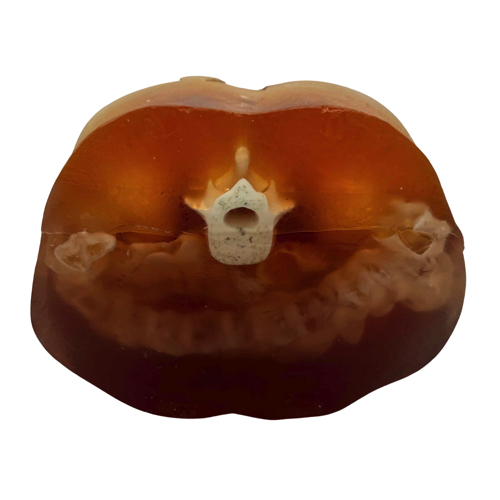

True Phantom Solutions US-A03 Adult Sectional Abdomen (Portable FAST Simulator) For X-Ray CT, US

Size: 11 x 9 x 8 Inches,

Weight: 22 Lbs (approx.)

Organs with Speckles (liver, kidneys, etc.)

Sound velocity / Density / Attenuation at 2.25 MHz / Hardness / T2 / Speckles

1435 ± 10 m/s / 0.99 g/cm³ / 1.0 ± 0.2 dB/cm / 20 Shore 00 / 70 ms / VARIABLE

Organs without Speckles (stomach, intestines, etc.)

Sound velocity / Density / Attenuation at 2.25 MHz / Hardness / T2 / Speckles

1400 ± 10 m/s / 0.99 g/cm³ / 1.0 ± 0.2 dB/cm / 20 Shore 00 / 70 ms / NO

Body Tissue

Sound velocity / Density / Attenuation at 2.25 MHz / Hardness / T2 / Speckles

1410 ± 10 m/s / 1.00 g/cm³ / 1.2 ± 0.2 dB/cm / 30 Shore 00 / 65 ms / NO/LOW

Lesion Feature

Sound velocity / Density / Attenuation at 2.25 MHz / Hardness / T2 / Speckles

1400 ± 10 m/s / 1.01 g/cm³ / 1.2 ± 0.2 dB/cm / 30 Shore 00 / 65 ms / YES

Cortical Bone

Sound velocity / Density / Attenuation at 2.25 MHz / Hardness / T2 / Speckles

3000 ± 30 m/s / 2.31 g/cm³ / 6.4 ± 0.3 dB/cm / N/A / N/A / N/A

Trabecular Bone

Sound velocity / Density / Attenuation at 2.25 MHz / Hardness / T2 / Speckles

2800 ± 50 m/s / 2.03 g/cm³ / 21 ± 2 dB/cm / N/A / N/A / N/A
