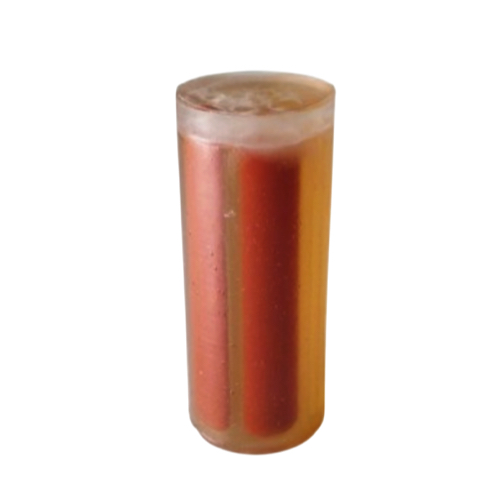

True Phantom Solutions RT-C01 Rat Phantom (Cylindrical) For X-Ray CT, MRI

Size: 1 x 1 x 3 Inches

Weight: 1 Lb (approx.)

Transparent

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

1400 ± 10 m/s / 1.00 g/cm³ / 40 Shore 00 / 50 ms / NO / 1.5 ± 0.2 dB/cm

Transparent

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

1400 ± 10 m/s / 1.01 g/cm³ / 30 Shore 00 / 65 ms / NO / 1.2 ± 0.2 dB/cm

Red

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

1400 ± 10 m/s / 1.04 g/cm³ / 30 Shore 00 / 65 ms / YES / 1.2 ± 0.2 dB/cm

Cartilage

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

1850 ± 10 m/s / 1.06 g/cm³ / 85 Shore 00 / 20 ms / N/A / 30 ± 2 dB/cm

Non-Transparent

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

1400 ± 10 m/s / 1.00 g/cm³ / 20 Shore 00 / 75 ms / YES / 1.0 ± 0.2 dB/cm
