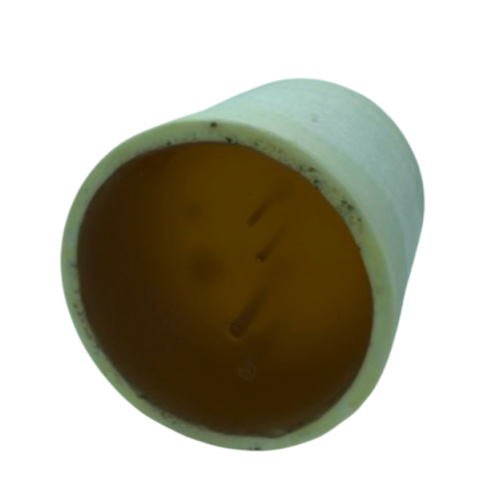

True Phantom Solutions HD-G01 Cylindrical Head For X-Ray CT, US, MRI

Size: 5 29/32 x 5 29/32 x 5 29/32 Inches

Weight: 8 Lbs (approx.)

Cortical Bone

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

3000 ± 30 m/s / 2.31 g/cm³ / N/A / N/A / N/A / 6.4 ± 0.3 dB/cm

Trabecular Bone

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

2800 ± 50 m/s / 2.03 g/cm³ / N/A / N/A / N/A / 21 ± 2 dB/cm

Brain Matter

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

1400 ± 10 m/s / 0.99 g/cm³ / 20 Shore 00 / 70 ms / YES / 1.0 ± 0.2 dB/cm

Tumor

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

1400 ± 10 m/s / 1.01 g/cm³ / 1.2 ± 0.2 Shore 00 / 30 ms / 65 / YES
