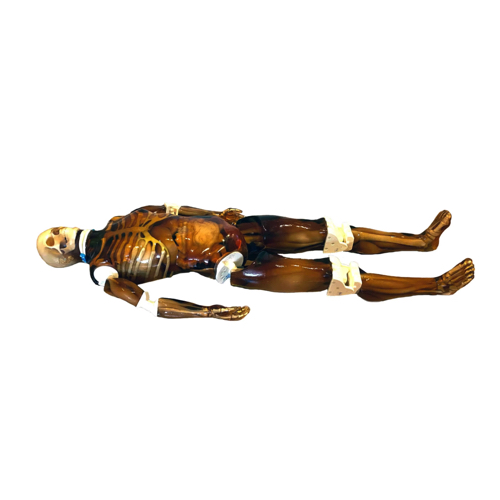

True Phantom Solutions FB-A02 Adult Full Body (With Muscles) For X-Ray CT, MRI

Size: 69 inches

Weight: 154 lbs (approx.)

Organs with Speckles (liver, kidneys, etc.)

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

1435 ± 10 m/s / 0.99 g/cm³ / 20 Shore 00 / 70 ms / VARIABLE / 1.0 ± 0.2 dB/cm

Organs without Speckles (stomach, intestines, etc.)

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

1400 ± 10 m/s / 0.99 g/cm³ / 20 Shore 00 / 70 ms / NO / 1.0 ± 0.2 dB/cm

Body Tissue

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

1410 ± 10 m/s / 1.00 g/cm³ / 35 Shore 00 / 55 ms / NO/LOW / 1.5 ± 0.2 dB/cm

Tumor Feature (Optional)

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

1400 ± 10 m/s / 1.01 g/cm³ / 30 Shore 00 / 65 ms / YES / 1.2 ± 0.2 dB/cm

Cortical Bone

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

3000 ± 30 m/s / 2.31 g/cm³ / N/A / N/A / N/A / 6.4 ± 0.3 dB/cm

Trabecular Bone

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

2800 ± 50 m/s / 2.03 g/cm³ / N/A / N/A / N/A / 21 ± 2 dB/cm

Brain Matter

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

1400 ± 10 m/s / 0.99 g/cm³ / 20 Shore 00 / 70 ms / YES / 1.0 ± 0.2 dB/cm

Brain White Matter

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

1400 ± 10 m/s / 1.01 g/cm³ / 35 Shore 00 / 60 ms / YES / 1.3 ± 0.2 dB/cm

Muscle Tissue

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

1400 ± 10 m/s / 1.01 g/cm³ / 35 Shore 00 / 60 ms / YES / 1.3 ± 0.2 dB/cm
