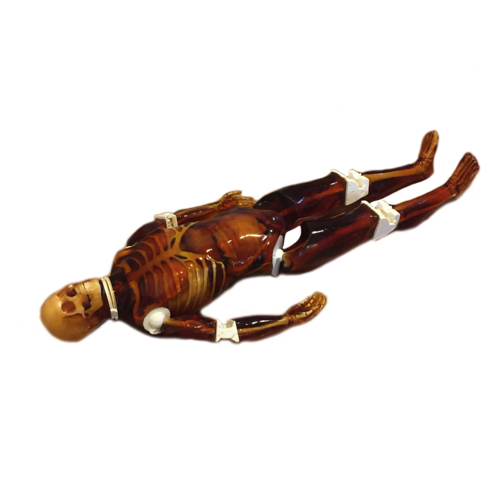

True Phantom Solutions FB-A01 Adult Full Body For X-Ray CT, MRI

Size: 69 Inches

Weight: 154 Lbs (approx.)

Organs with Speckles (liver, kidneys, etc.):

Sound Velocity  Density / Attenuation Measured at 2.25 MHz / Hardness / T2 / Speckles

1435 ± 10 [m/s] / 0.99 [ g/cm3 ] / 1.0 ± 0.2 [dB/cm] / 20 [Shore OO] / 70 [ms] / VARIABLE

Organs without Speckles (stomach, intestines, etc.):

Sound Velocity  Density / Attenuation Measured at 2.25 MHz / Hardness / T2 / Speckles

1400 ± 10 [m/s] / 0.99 [ g/cm3 ] / 1.0 ± 0.2 [dB/cm] / 20 [Shore OO] / 70 [ms] / NO

Body Tissue:

Sound Velocity  Density / Attenuation Measured at 2.25 MHz / Hardness / T2 / Speckles

1410 ± 10 [m/s] / 1.00 [ g/cm3 ] / 1.5 ± 0.2 [dB/cm] / 40 [Shore OO] / 55 [ms] / NO/LOW

Tumor Feature (Optional):

Sound Velocity  Density / Attenuation Measured at 2.25 MHz / Hardness / T2 / Speckles

1400 ± 10 [m/s] / 1.01 [ g/cm3 ] / 1.2 ± 0.2 [dB/cm] / 30 [Shore OO] / 65 [ms] / YES

Cortical Bone:

Sound Velocity  Density / Attenuation Measured at 2.25 MHz / Hardness / T2 / Speckles

3000 ± 30 [m/s] / 2.31 [ g/cm3 ] / 6.4 ± 0.3 [dB/cm] / N/A / N/A / N/A

Trabecular Bone:

Sound Velocity  Density / Attenuation Measured at 2.25 MHz / Hardness / T2 / Speckles

2800 ± 50 [m/s] / 2.03 [ g/cm3 ] / 21 ± 2 [dB/cm] / N/A / N/A / N/A

Brain Matter:

Sound Velocity  Density / Attenuation Measured at 2.25 MHz / Hardness / T2 / Speckles

1400 ± 10 [m/s] / 0.99 [ g/cm3 ] / 1.0 ± 0.2 [dB/cm] / 20 [Shore OO] / 70 [ms] / YES

Brain White Matter:

Sound Velocity  Density / Attenuation Measured at 2.25 MHz / Hardness / T2 / Speckles

1400 ± 10 [m/s] / 1.01 [ g/cm3 ] / 1.3 ± 0.2 [dB/cm] / 35 [Shore OO] / 60 [ms] / YES

Muscle Tissue (Optional):

Sound Velocity  Density / Attenuation Measured at 2.25 MHz / Hardness / T2 / Speckles

1400 ± 10 [m/s] / 1.01 [ g/cm3 ] / 1.3 ± 0.2 [dB/cm] / 35 [Shore OO] / 60 [ms] / YES
