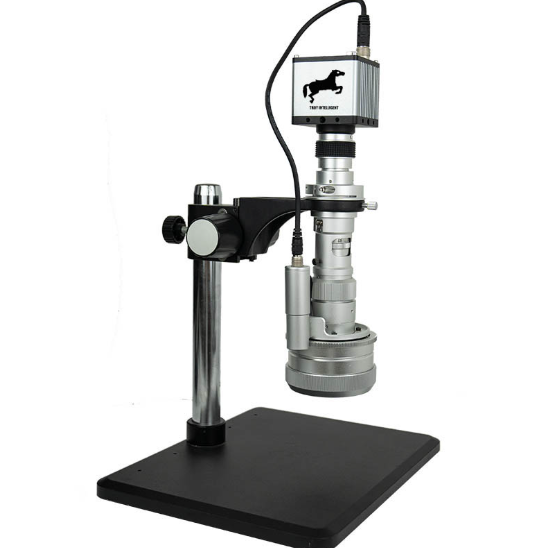

Troy Intelligent TVN-360A_B Electron microscope (1920*1080, 60fps, 0.7X – 4.5X)

TVN-360A HDMI CAMERA

Chip Structure: FPGA+ARM

Optical dimensions: 1/2 inch

Operating system: Linux 3.10

Pixel size: 3.75um*3.75um

kernel structure: Dual-core Cortex-A9

Image resolution: 1920*1080/ 60fps

Main frequency speed: 1Ghz

White balance: Automatic

Optical dimensions: 1/2 inch

Eliminate glare options: 3 levels

Resolution: 1920×1080

Edge Enhancement Mode: 3 levels

Frame rate: 60fps

Color adjustment: R, G, B can be adjusted independently

Connection interface: 2 USB ports. U disk, wireless mouse or keyboard can be connected

Adjustable crosshair: 8 flexible aiming lines

Operating voltage: 12V

video output: HDMI output possible

Operating temperature: -10-70 degrees C

Lens: C interface

Size: 61*61*72mm

Voltage DC 5-12V

Mass: 450g

LENS SPECIFICATIONS

Different Zoom Servers: Coaxial and confocal during zoom

Continuous zoom objective lens: 0.7X-4.5X

Zoom ratio: 6.4:1

With 1XCCD: Total magnification can be extended to 50X-300X

With 0.5XCCD: Total magnification can be extended to 25X-150X

Working distance:: 45 degree 20mm

Size to fit the server: Ø 48mm

Light source: Adjustable

Engine speed: Adjustable

Connection: HDMI, USB

Accessory:

- Light Souce

- Lens Lens 5X, 10X 20X 50X

- HDMI cable

- 12V source

- Base and Holder
