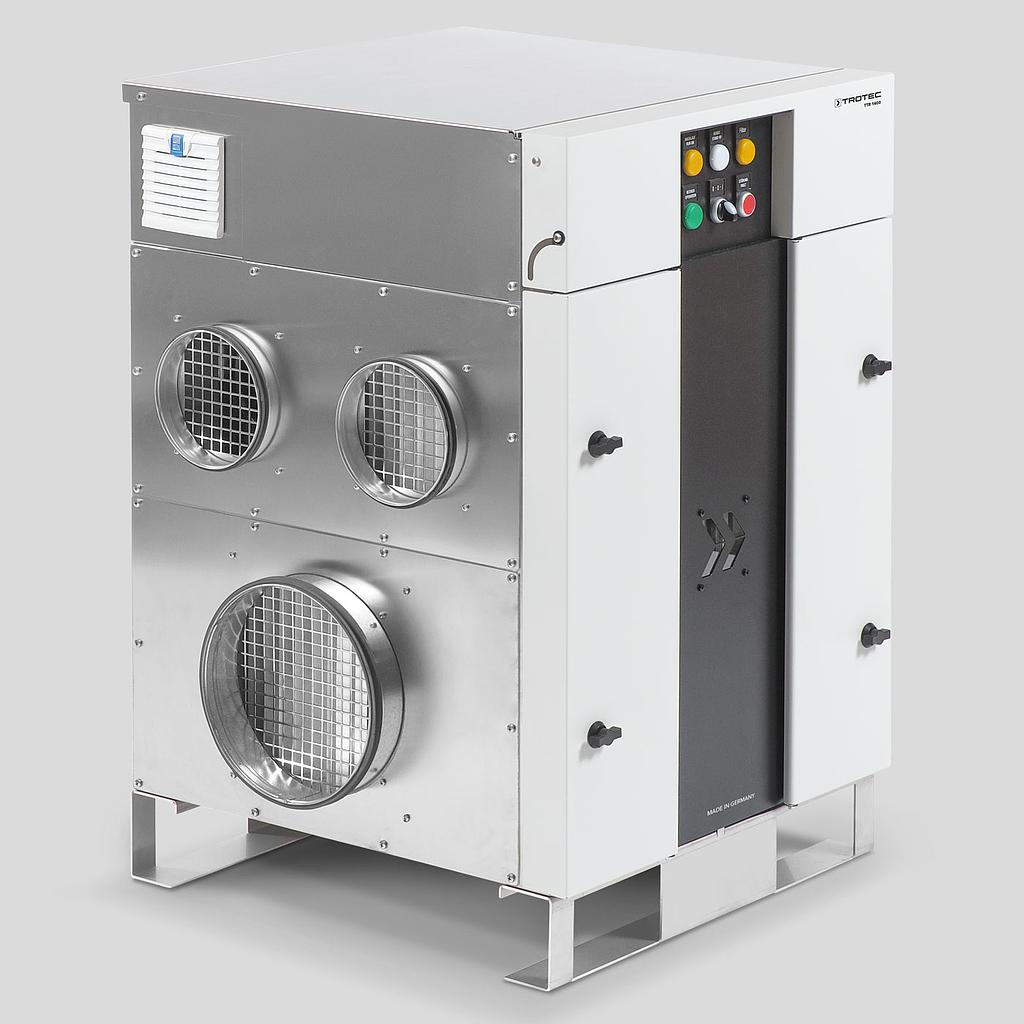

Trotec TTR 1400 Industrial Desiccant Dehumidifier (7.4kg/h; 1450m³/h)

General technical data (at 20 ° C / 60% rh, 1013 mbar)

Dehumidification: 7.4 kg/h

Dry air

Air volume free-blowing: 1750 m³/h

Air volume nominal: 1450 m³/h

Compression: 300 Pa

Regeneration air

Air volume: 270 m³/h

Compression: 300 Pa

Heating: 9 kW

Power input: 9.8 kW

Voltage: 3/PE/380 - 480 V/50 - 60 Hz

Max. current consumption: (@ 3 x 400 V) 15 A

Recommended fusing: 16 A

Weight: 100 kg

Dimensions (L x W x H): 734 mm x 649 mm x 942 mm
