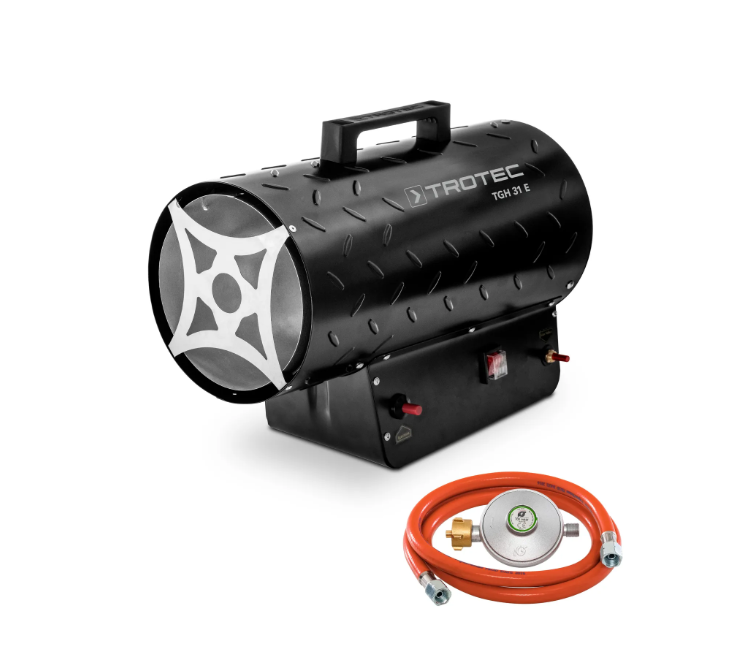

Trotec TGH 31 E Gas heater fans (30kW)

Heating capacity [kW]: 30

Gas

Type: propane

Consumption [g/h]: 2,180

Gas cylinder capacity [kg]: ≤ 33

Operating pressure [bar]: 0.7

Fan stages: 1

Air volume [m³/h]: 1,000

Input voltage [V/Hz]: 230/50

Nominal current consumption [A]: 0.32

Max. power input [kW]: 0.07

Protection class: I

Electric connection

Connection plug: CEE 7/4

Cable length [m]: 1.3

Ignition head: Piezo ignite

Flame failure protection: integrated

Overheating protection: 110°C

Mobility: portable

Length [mm]: 475

Width [mm]: 243

Height [mm]: 375

Weight [kg]: 6

Standard scope of delivery: gas heater fan, pressure reducer, and gas line
