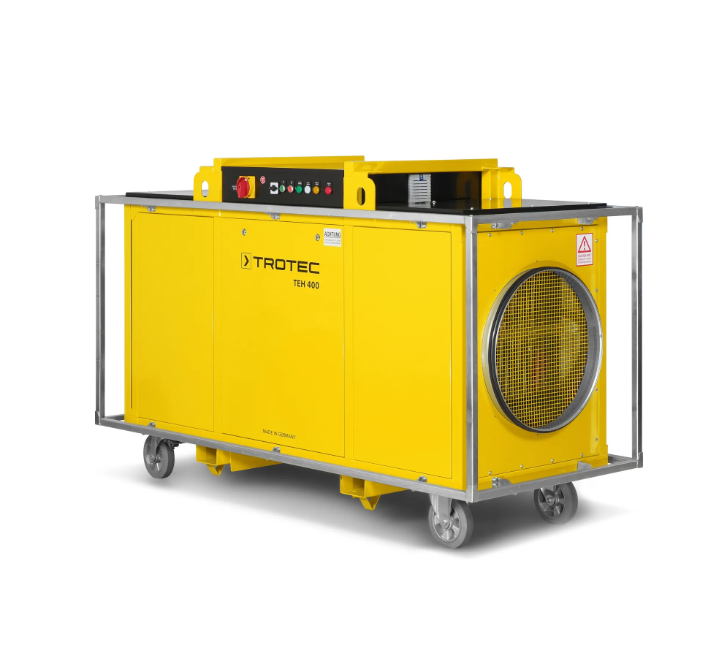

Trotec TEH 400 Industrial electric heater (9,000 m³/h)

Air flow rate max. [m³/h]: 9,000

Heating capacity [kW / kcal]: 120/ 103,181

Air pressure [Pa]: 600

Air discharge temperature max. [°C]: 65

Temperature increase (ΔT) max. [°C]: 60

Fan [kW]: 5.4

Controls: Switch with eight stages for air volume and air temperature

Stage 0

Air flow rate [m³/h]: 9,000

Temperature increase (ΔT) [°C]: –

Stage 1

Air flow rate [m³/h]: 9,000

Temperature increase (ΔT) [°C]: 15

Stage 2

Air flow rate [m³/h]: 9,000

Temperature increase (ΔT) [°C]: 25

Stage 3

Air flow rate [m³/h]: 9,000

Temperature increase (ΔT) [°C]: 40

Stage 4

Air flow rate [m³/h]: 6,000

Temperature increase (ΔT) [°C]: –

Stage 5

Air flow rate [m³/h]: 6,000

Temperature increase (ΔT) [°C]: 15

Stage 6

Air flow rate [m³/h]: 6,000

Temperature increase (ΔT) [°C]: 40

Stage 7

Air flow rate [m³/h]: 6,000

Temperature increase (ΔT) [°C]: 60

Input voltage [V / Hz]: 400 / 50-60

Current consumption max. [A / kW]: 128 / 125.5

Fuse protection [A] / plug: 200 / direct connection

Sound level (distance 3 m) [dB(A)]: 76

Hose connector ø [mm]: 450

Suitable for hose lengths up to [m]: 100

Mobility: wheelable / fork lifter / crane

Length [mm]: 1,920

Width [mm]: 950

Height [mm]: 1,450

Weight [kg]: 460

Minimum cable diameter [mm]: 95

Overheating protection: yes
