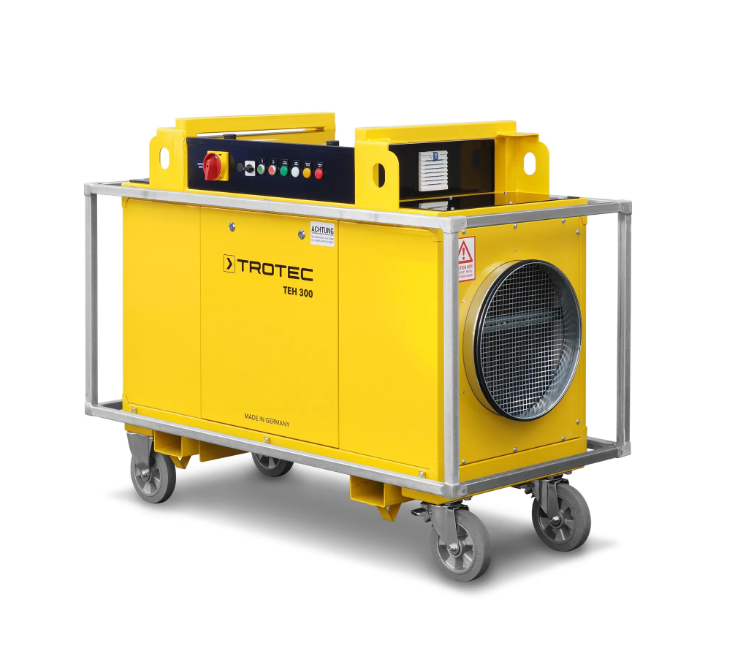

Trotec TEH 300 Industrial electric heater (6,000 m³/h)

Air flow rate max. [m³/h]: 6,000

Heating capacity [kW / kcal]: 80 / 68,788

Air pressure [Pa]: 600

Air discharge temperature max. [°C]: 65

Temperature increase (ΔT) max. [°C]: 60

Fan [kW]: 3

Controls: Switch with eight stages for air volume and air temperature

Stage 0

Air flow rate [m³/h]: 6,000

Temperature increase (ΔT) [°C]: –

Stage 1

Air flow rate [m³/h]: 6,000

Temperature increase (ΔT) [°C]: 15

Stage 2

Air flow rate [m³/h]: 6,000

Temperature increase (ΔT) [°C]: 25

Stage 3

Air flow rate [m³/h]: 6,000

Temperature increase (ΔT) [°C]: 40

Stage 4

Air flow rate [m³/h]: 4,000

Temperature increase (ΔT) [°C]: –

Stage 5

Air flow rate [m³/h]: 4,000

Temperature increase (ΔT) [°C]: 20

Stage 6

Air flow rate [m³/h]: 4,000

Temperature increase (ΔT) [°C]: 40

Stage 7

Air flow rate [m³/h]: 4,000

Temperature increase (ΔT) [°C]: 60

Input voltage [V / Hz]: 400 / 50-60

Current consumption max. [A / kW]: 123 / 84

Fuse protection [A] / plug: 125/ CEE 125 A, 5-pole

Sound level (distance 3 m) [dB(A)]: 76

Hose connector ø [mm]: 450

Suitable for hose lengths up to [m]: 100

Mobility: wheelable / fork lifter / crane

Length [mm]: 1,625

Width [mm]: 800

Height [mm]: 1,270

Weight [kg]: 310

Minimum cable diameter [mm]: 50

Overheating protection: yes
