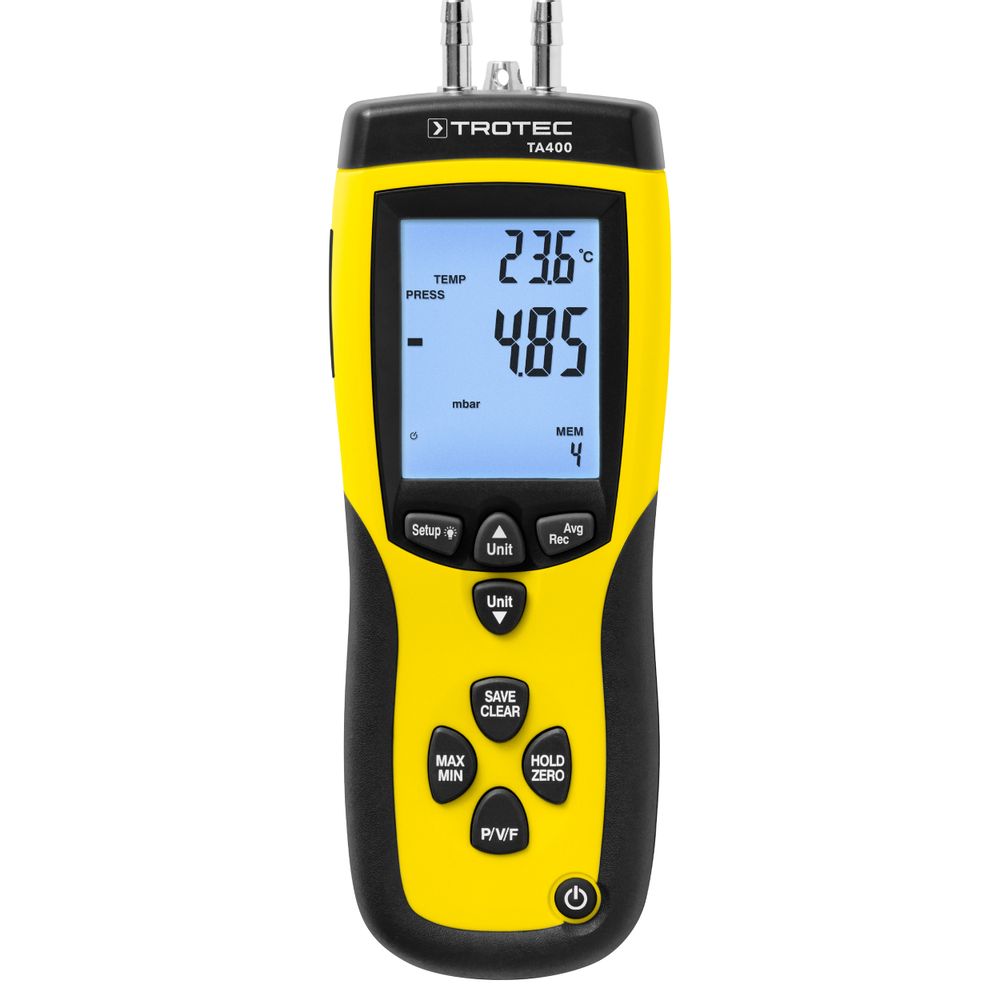

Trotec TA400 Dynamic pressure anemometer (1 – 80 m/s; ±2.5 % (@10 m/s))

Dimensions of the device (height x width x depth): 210 x 75 x 50 mm

Weight of the device incl. Pitot tube and battery: 540 g

Length of the Pitot tube: 335 mm

Diameter of the Pitot tube: 8 mm

Hose lengths: 850 mm each

Operating conditions: 0 °C to +50 °C. < 90 % RH

Storage conditions: 0 °C to +50 °C. < 90 % RH

Power supply: 1 x 9 V battery

Air pressure:

Accuracy: ± 0.3 % at +25 °C

Pressure range: 0 to 5000 Pa

Pressure: max. 5000 Pa

Measuring range:

PSI: 0.7252

mbar: 50.00

inH2O: 20.07

mmH2O: 509.8

Pa: 5000

Resolution:

PSI: 0.0001

mbar: 0.01

inH2O: 0.01

mmH2O: 0.1

Pa: 1

Air velocity:

Measuring range

m/s: 1 to 80.00

ft/min: 200 to 15733

km/h: 3.6 to 288.0

MPH: 2.24 to 178.66

knots: 2.0 to 154.6

Resolution

m/s: 0.01

ft/min: 1

km/h: 0.1

MPH: 0.01

knots: 0.1

Accuracy: m/s: ±2.5 % at 10 m/s; ft/min. km/h. MPH. knots: The accuracy depends on the air velocity and the size of the air duct.

Air volume flow

Measuring range: CFM: 0 ft3 /min to 99999 ft3/min; CMM: 0 m3 /min to 99999 m3 /min

Resolution: CFM: 0.0001 to 100 ;CMM: 0.001 to 100

Temperature

Measuring range: °C: 0 °C to 50 °C; °F: 32.0 °F to 122.0 °F

Resolution: °C: 0.1; °F: 0.1

Accuracy: °C: ± 1.0 °C ; °F: ± 2.0 °F

Scope of delivery

• 1 x Device TA400

• 1 x 9 V battery

• 1 x Pitot tube

• 1 x Tube. white

• 1 x Tube. black

• 1 x Transport case

• 1 x Mini USB cable

• 1 x CD-ROM with software

• 1 x Quick guide
