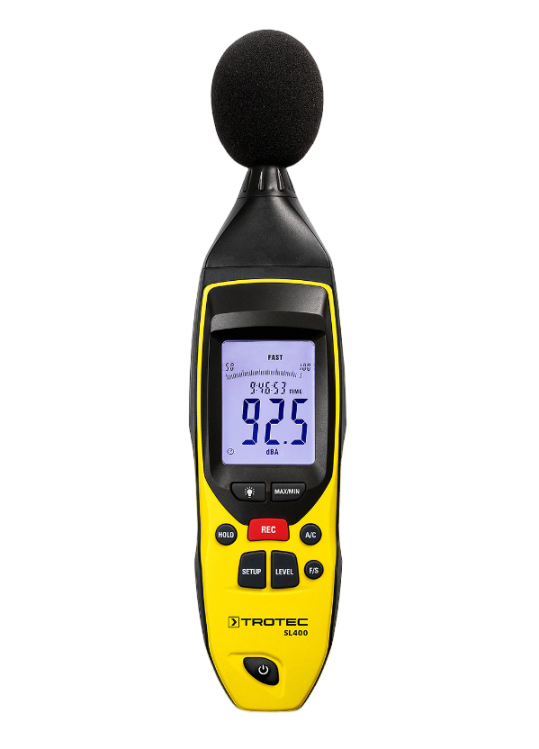

Trotec SL400 Sound Level Meter (30~130dB)

Measuring range: 30 dB to 130 dB

Accuracy: ±1.4 dB (class 2 according to DIN EN 61672)

Resolution: 0.1 dB

Frequency range: 31.5 Hz to 8kHz

Dynamic range: 50 dB

Partial measuring ranges: 30 dB to 80 dB, 50 dB to 100 dB, 30 dB to 130 dB

Display response time: 500 ms

Power supply: 9 V battery 006P or NEDA 1604 or IEC 6F22

Alarm function: OVER: Fallen below measuring range UNDER: Fallen below measuring range

Time weighting: FAST: 125 ms; SLOW: 1 s

Microphone: 1/2-inch electret condensermicrophone

Operating conditions: 0 °C to 40 °C with 10 % to90 % RH

Storage conditions: -10 °C to +60 °C with 10 % to 75 % RH

Weight: 305 g

Dimensions (length x width x height): 255 x 63 x 45 mm

Automatic switch-off: Switch-off after approx. 15 minof non-use

Scope of delivery

• 1 x Digital sound level meter

• 1 x Wind shield for microphone

• 1 x Mini tripod

• 1 x CD with software

• 1 x USB cable

• 1 x Transport case

• 1 x Mini screwdriver

• 1 x 9 V battery

• 1 x Power adapter

• 1 x Quick guide

Manual
