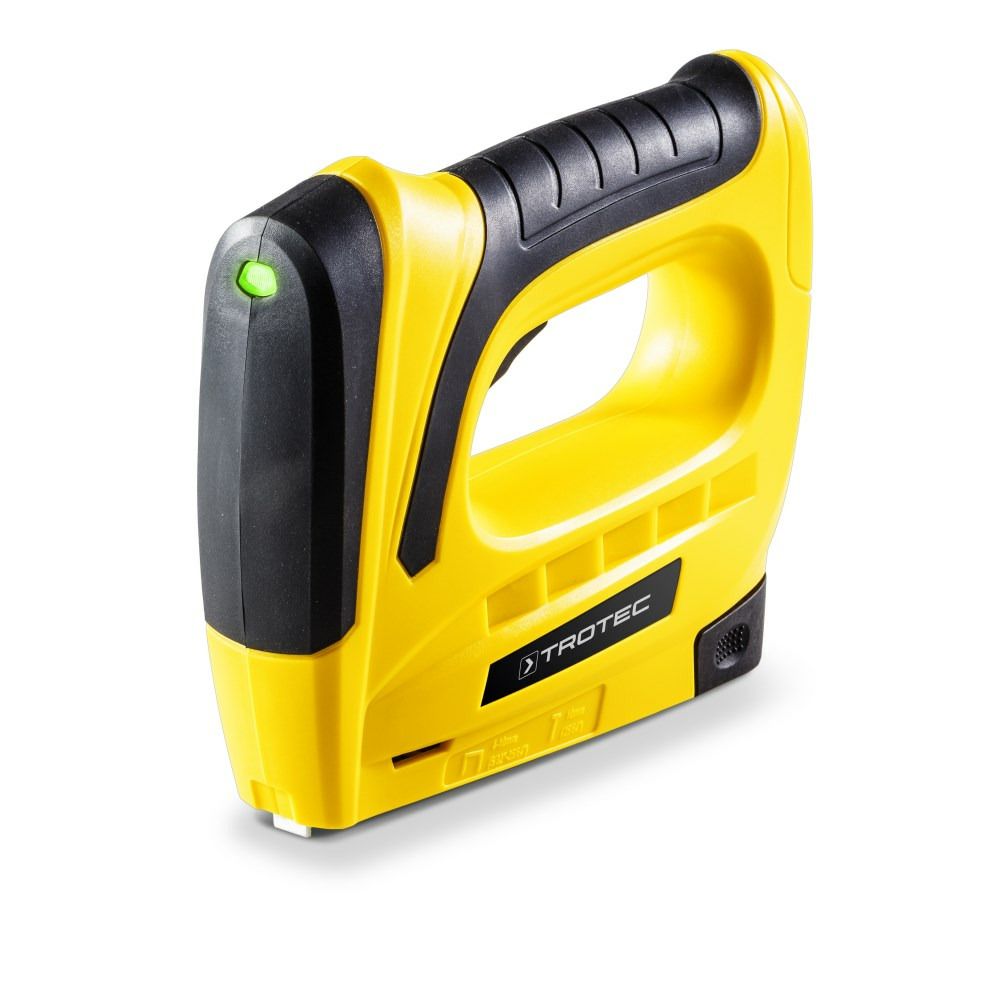

Trotec PTNS 10-3.6V Cordless Stapler (30 min-1)

Technical data:

Firing rate [min-1]: 30

Holding capacity of the magazine: 100 staples of type 53, 50 wire nails of type 47

Staples:

Type: 53

Staple length: 4 - 10 mm

Staple width [mm]: 11.4

Thickness [mm]: 0.74

Wire nails:

Type: 47

Wire nail length: 10 mm

Wire nail width [mm]: 1.8

Sound values according to EN 60745:

Sound pressure level [dB(A)]: 80

Uncertainty (K) [dB]: 3

Sound power level [dB(A)]: 91

Uncertainty (K) [dB]: 3

Vibration information according to EN 60745:

Vibration emission value (ah) [m/s²]: 11.6

Uncertainty K [m/s²]: 1.5

Electrical values battery:

Battery nominal voltage [V]: 3.6

Battery capacity [Ah]: 1.5

Battery type: Li-ion

Battery charging time [h]: 3

Charger:

Mains connection: 100 - 240 V, 50/60 Hz

Output voltage [V]: 5

Nominal current consumption [mA]: 600

Connection plug: CEE 7/16

Cable length [m]: 1.5

Protection class: II

Dimensions:

Length (packaging excluded) [mm]: 43

Width (packaging excluded) [mm]: 180

Height (packaging excluded) [mm]: 150
