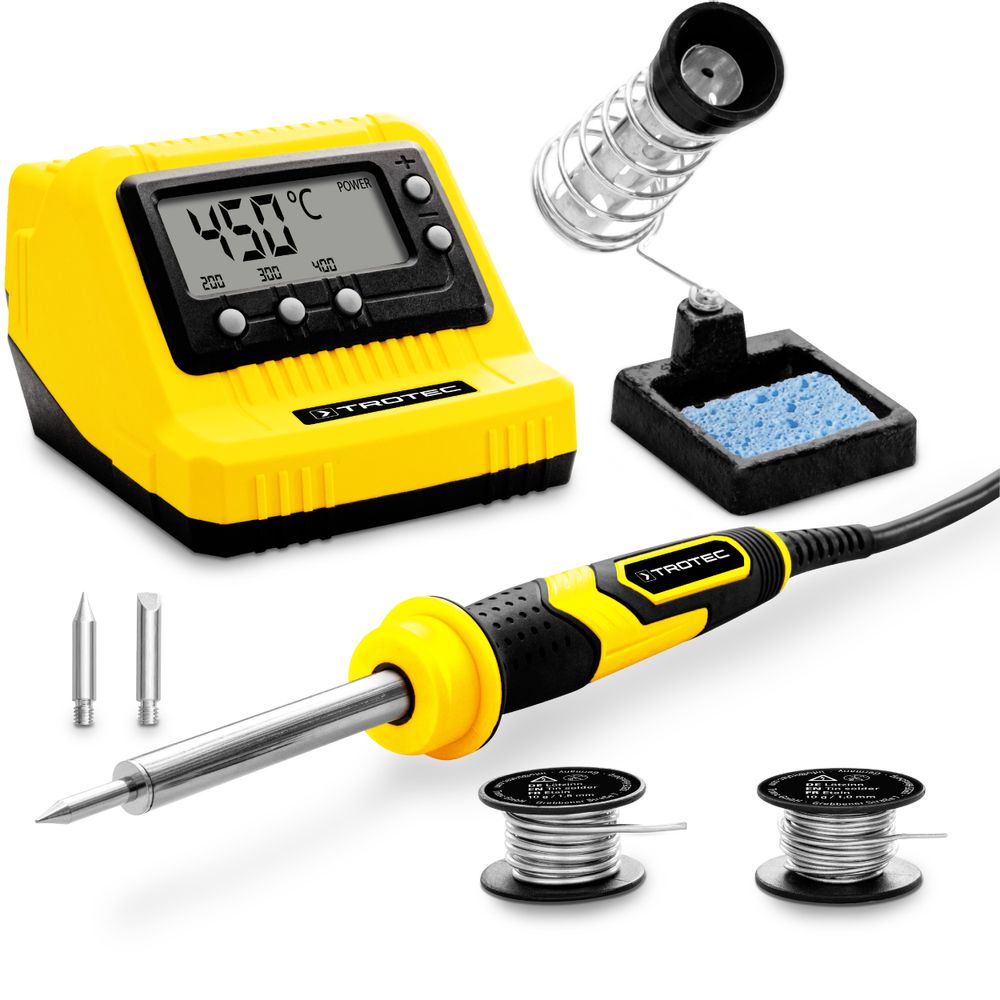

Trotec PSIS 10-230V Digital soldering station (60 W; 200-450°C)

Technical data:

Power input [W]: 60

Temperature range: 200-450°C

Temperature preselection: 3-stage, 200 °C, 300 °C, 400 °C

Electrical values:

Mains connection: 230 V, 50 Hz

Nominal current consumption [A]: 0.26

Electric connection:

Connection plug: CEE 7/7

Cable length of mains plug to station [m]: 1.5

Cable length of soldering iron plug to station [m]: 1.2

Safety feature:

Protection class: I

Type of protection: IPX0

Functions and features:

ON/OFF switch: ✓

Soldering station: ✓

Soldering iron: ✓

Holder for soldering iron: ✓

LCD: ✓

Control knobs: ✓

Temperature adjustment: ✓

Temperature unit indication: ✓

Indication of the pre-programmed temperature: ✓

Display of nominal and actual temperature: ✓

Indication of temperature during heating process: ✓

Energy saving mode: ✓

Integrated storage compartment: ✓

Standby mode: ✓

Rubber soft grip: ✓

Accessories scope of delivery:

Number of soldering tips: 3

Solder: 2 x lead-free

Soldering sponge: ✓

Soldering iron holder: ✓

Dimensions:

Length (packaging excluded) [mm]: 150

Width (packaging excluded) [mm]: 125

Height (packaging excluded) [mm]: 95

Weight: (packaging excluded) [kg]: 1
