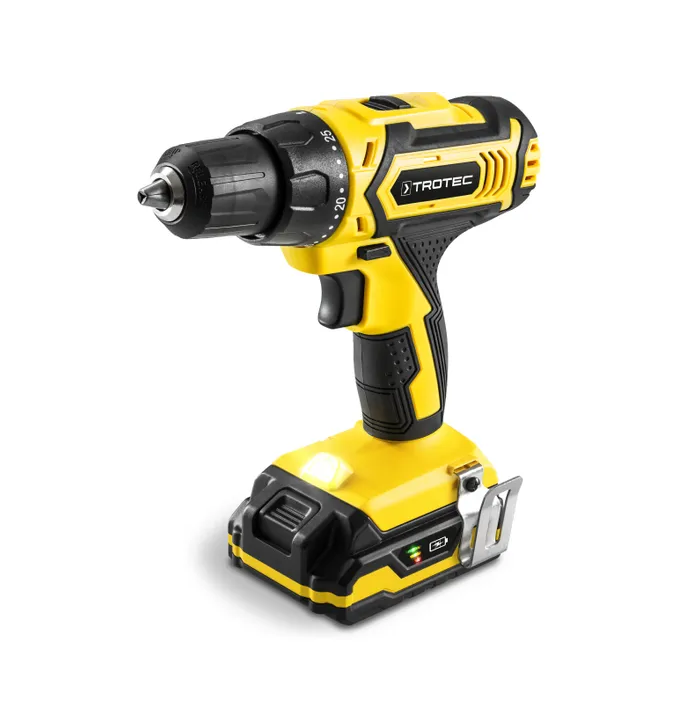

Trotec PSCS 11‑20V Cordless Drill Driver (0 - 1550; 35 Nm)

Technical data:

Number of speed levels: 2

Idle speed 1. Speed level: 0 - 400

Idle speed 2. Speed level: 0 - 1.550

Number of torque settings: 25 + 1

Max. torque [Nm]: 35

Tool holder: Quick-release chuck

Max. chucking range [mm]: 13

Maximum drilling diameter:

Wood [mm]: 30

Metal [mm]: 13

Sound values according to EN 62841:

Sound pressure level [dB(A)]: 72.2

Sound power level [dB(A)]: 83.2

Uncertainty K [dB]: 5

Vibration information according to EN 62841:

Vibration emission value for drilling in metal (ah) [m/s²]: 1.643

Uncertainty (K) drilling in metal: 1.5 m/s²

Electrical values battery:

Battery nominal voltage [V]: 20

Battery capacity [Ah]: 2

Capacity indication: 3-stage

Battery type: Li-ion

Battery charging time [h]: 1

Charger:

Mains connection: 230 - 240 V, 50 Hz

Output voltage [V]: 21.5

Power input [W]: 65

Nominal current consumption [mA]: 2400

Connection plug: CEE 7/16

Cable length [m]: 1.5

Protection class: II

Dimensions:

Length (packaging excluded) [mm]: 210

Width (packaging excluded) [mm]: 75

Height (packaging excluded) [mm]: 225

Weight:

(packaging excluded) [kg]: 1.7
