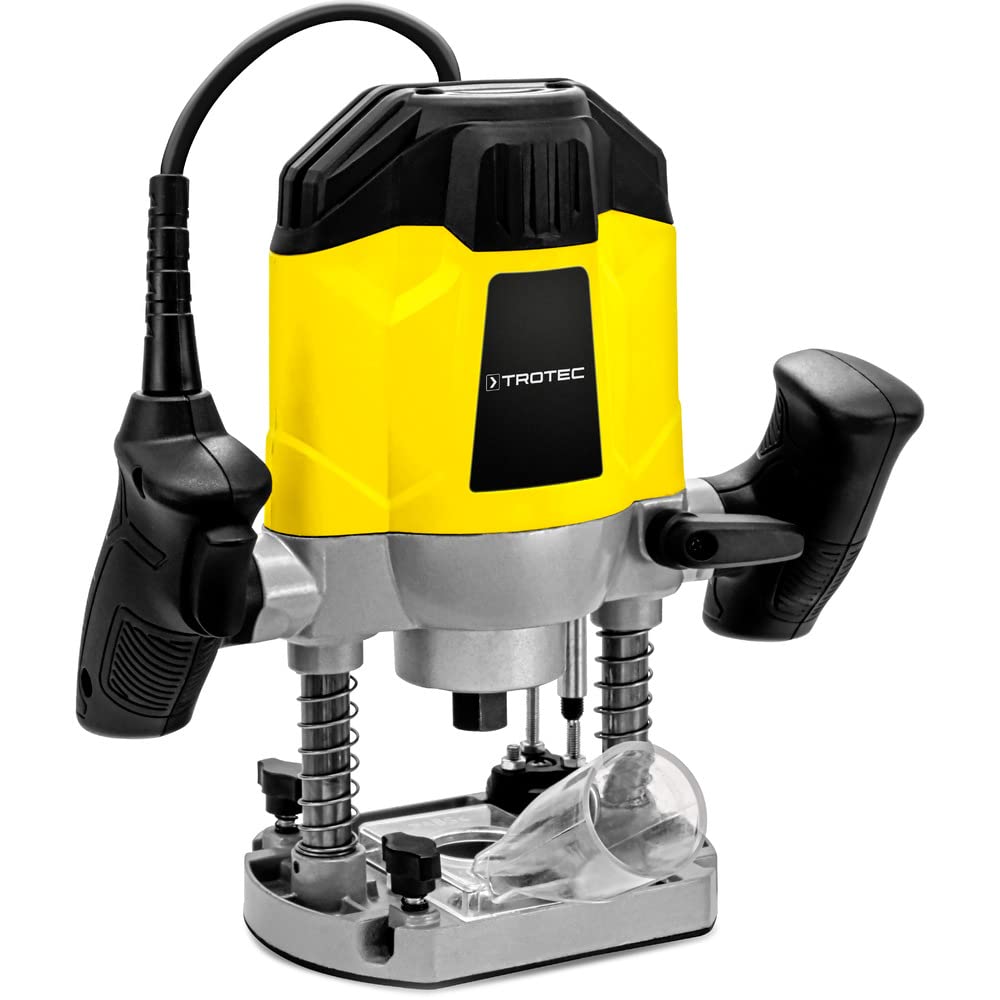

Trotec PRTS 10-1200 Routing Machine (11.000 - 30.000 min-1)

Technical data:

Power input [W]: 1200

Idle speed: 11.000 - 30.000 min-1

Plunge depth [mm]: 55

Tool holder: 6 – 8 mm

Milling depth setting: Up to 55 mm

Measuring unit system: Metric

Electrical values:

Mains connection: 230 V, 50 Hz

Electric connection:

Connection plug: CEE 7/17

Cable length [m]: 3

Sound values according to EN 62841:

Sound pressure level [dB(A)]: 89

Sound power level [dB]: 100

Uncertainty (K) [m/s²]: 3

Vibration information according to EN 62841:

Vibration emission value (ah) Left handle [m/s²]: 5.06

Uncertainty (K) Left handle [m/s²]: 1.5

Vibration emission value (ah) Right handle [m/s²]: 6.437

Uncertainty (K) Right handle [m/s²]: 1.5

Safety feature:

Type of protection: IP20

Protection class: II

Dimensions:

Length (packaging excluded) [mm]: 73

Width (packaging excluded) [mm]: 198

Height (packaging excluded) [mm]: 277

Weight:

(packaging excluded) [kg]: 3
