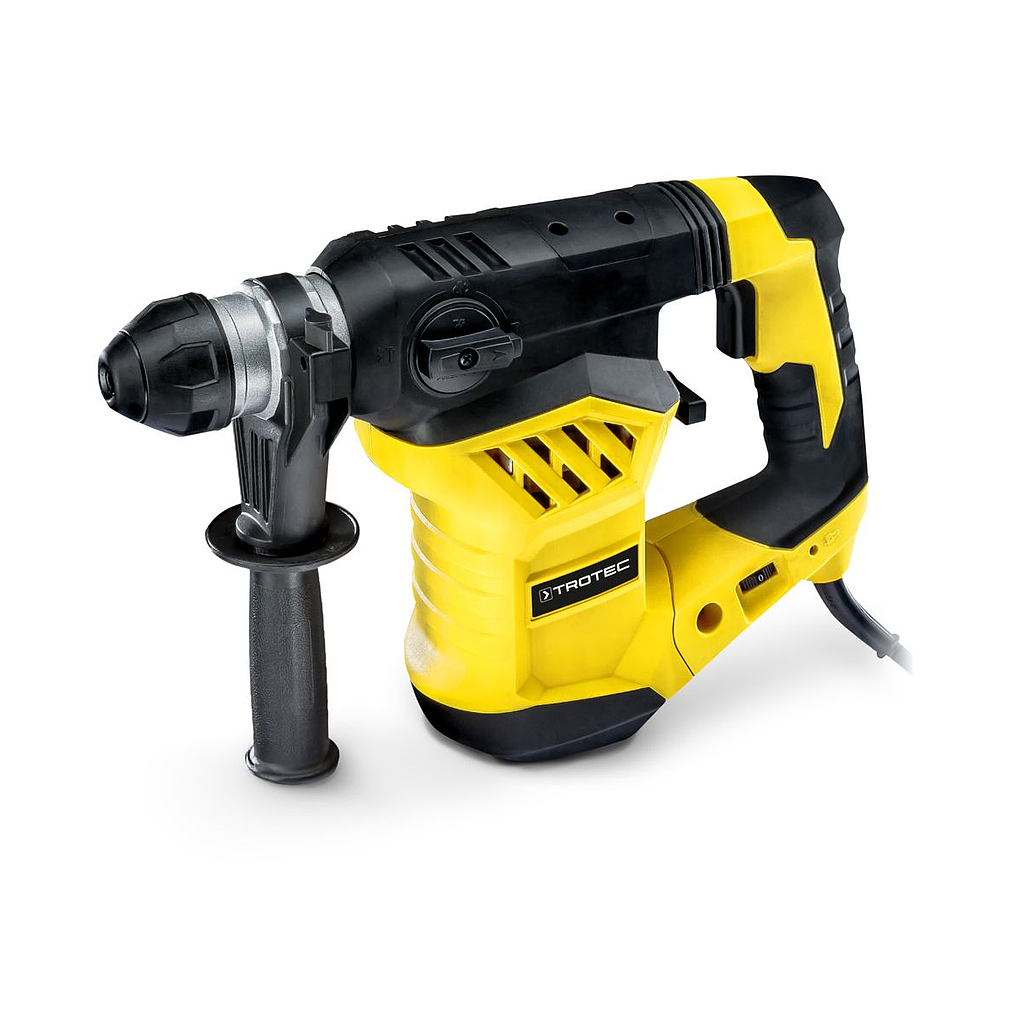

Trotec PRDS 11‑230V Hammer and Chisel Drill (0 - 4000 min-1; 6 Joule)

Technical data:

Number of speed levels: 1

Idle speed 1. Speed level: 0 - 800

Impact frequency combined 1. Speed level: 0 - 4.000 min-1

Impact energy [Joule]: 6

Tool holder: SDS-plus

Max. chucking range [mm]: 13

Maximum drilling diameter:

Wood [mm]: 40

Metal [mm]: 13

Masonry / bricks [mm]: 32

Electrical values:

Mains connection: 230 V, 50 Hz

Power input [W]: 1600

Connection plug: CEE 7/17

Cable length [m]: 3

Protection class: II

Sound values according to EN 60745:

Sound pressure level hammer drilling [[dB(A)]]: 93.5

Sound power level hammer drilling [[dB(A)]]: 104.5

Uncertainty (K) [dB]: 3

Vibration information according to EN 60745:

Vibration emission value for hammer drilling in concrete (ah) [m/s2]: 15.037

Uncertainty hammer drilling in concrete (K) [m/s2]: 1.5

Vibration emission value for chiselling (ah) [m/s2]: 14.868

Uncertainty chiselling (K) [m/s2]: 1.5

Dimensions:

Length (packaging excluded) [mm]: 390

Width (packaging excluded) [mm]: 95

Height (packaging excluded) [mm]: 250

Weight:

(packaging excluded) [kg]: 6
