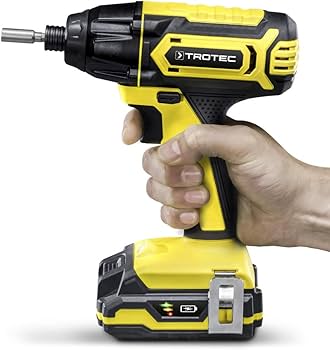

Trotec PIDS 10‑20V Cordless Impact Driver (0 - 3600 min-1; 180 Nm)

Technical data:

Idle speed 1. Speed level: 0 - 2.800 min-1

Impact frequency combined 1. Speed level: 0 - 3.600 min-1

Max. torque [Nm]: 180

Tool holder: 1/4" hexagon socket retainer

Maximum screw diameter:

Max. screw diameter wood [mm]: 8

Max. screw diameter metal [mm]: 8

Sound values according to EN 62841-2-2:

Sound pressure level [dB(A)]: 96.74

Sound power level [dB(A)]: 107.74

Uncertainty K [dB]: 3

Vibration information according to EN 62841-2-2:

Vibration emission value (ah) [m/s²]: 12.74

Uncertainty K [m/s2]: 1.5

Electrical values battery:

Battery nominal voltage [V]: 20

Battery capacity [Ah]: 2

Capacity indication: 3-stage

Battery type: Li-ion

Battery charging time [h]: 1

Charger:

Mains connection: 230 - 240 V, 50 Hz

Output voltage [V]: 21.5

Power input [W]: 65

Nominal current consumption [mA]: 2400

Connection plug: CEE 7/16

Cable length [m]: 1.5

Protection class: II

Start lock: ✓

Square socket adapter 1/4": ✓

Dimensions:

Length (packaging excluded) [mm]: 180

Width (packaging excluded) [mm]: 95

Height (packaging excluded) [mm]: 235

Weight:

(packaging excluded) [kg]: 1.5
