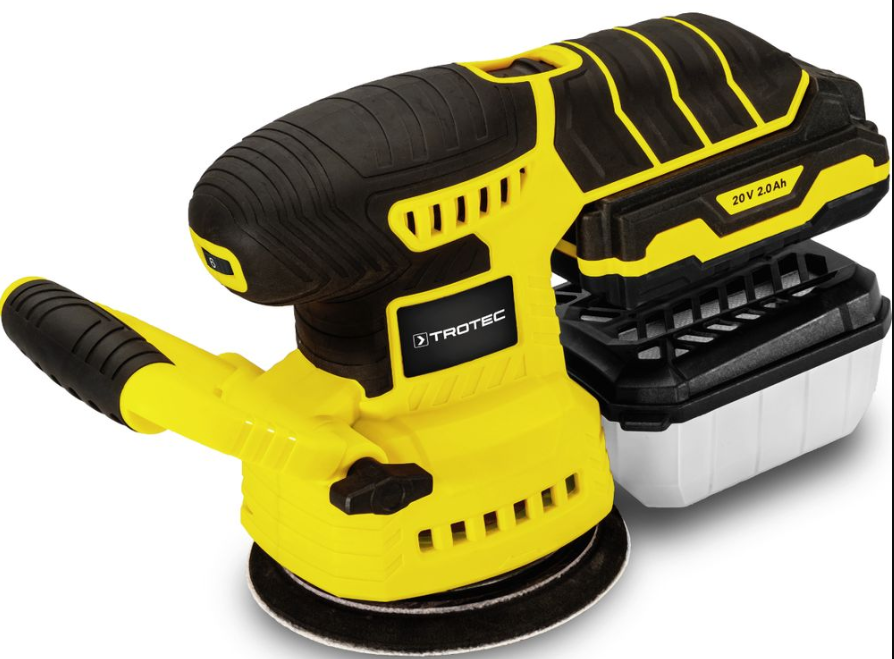

Trotec PESS 10-20V Grinding Machine (3.000 - 12.000 min-1; 3.2mm)

Technical data:

Oscillation frequency [-1]: 6.000 - 24.000 min-1

Idle speed: 3.000 - 12.000 min-1

Eccentricity [mm]: 3.2

Grinding surface Diameter [mm]: 125

Sound values according to EN 62841:

Sound pressure level [dB(A)]: 77.9

Sound power level [dB]: 88.9

Uncertainty K [dB(A)]: 3

Vibration information according to EN 62841:

Vibration emission value (ah) Main handle [m/s²]: 10.26

Uncertainty (K) Main handle [m/s²]: 1.5

Vibration emission value (ah) Front handle [m/s²]: 8.69

Uncertainty (K) Front handle [m/s²]: 1.5

Electrical values battery:

Battery nominal voltage [V]: 20

Battery capacity [Ah]: 2

Capacity indication: 3-stage

Battery type: Li-ion

Battery charging time [h]: 1

Charger:

Mains connection: 230 - 240 V, 50 Hz

Output voltage [V]: 21.5

Power input [W]: 65

Nominal current consumption [mA]: 2400

Connection plug: CEE 7/16

Cable length [m]: 1.5

Protection class: II

Dimensions:

Length (packaging excluded) [mm]: 120

Width (packaging excluded) [mm]: 200

Height (packaging excluded) [mm]: 160

Weight:

(packaging excluded) [kg]: 1.6
