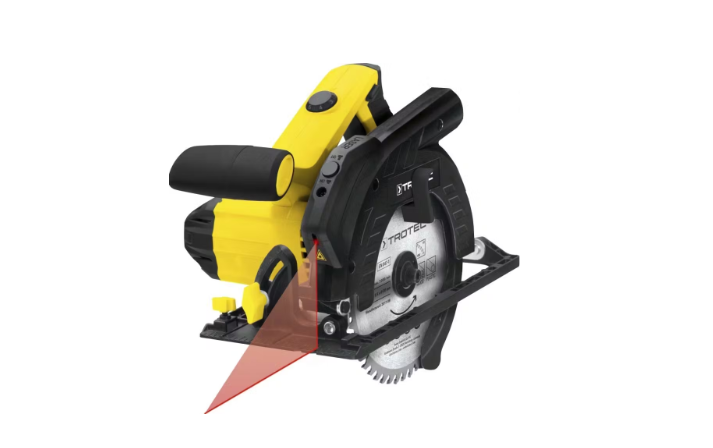

Trotec PCSS 10‑1400 Portable circular saw (2.000 - 4.800 min-1)

Technical data:

Idle speed: 2.000 - 4.800 min-1

Max. idle speed [min-1]: 4800

Min. idle speed: 2000

Cutting depth range at 45 °: max. 44 mm

Cutting depth range at 0 °: max. 65 mm

Electrical values:

Mains connection: 230 V, 50 Hz

Power input [W]: 1400

Protection class: II

Electric connection:

Connection plug: CEE 7/17

Cable length [m]: 3

Sound values according to EN 62841:

Sound pressure level LpA [dB(A)]: 87

Sound power level LwA [dB(A)]: 98

Uncertainty (K) Kpa / Kwa [dB]: 3

Vibration information according to EN 62841:

Vibration emission value (ah) Sawing wood [m/s²]: 1.2

Uncertainty (K) Sawing wood [m/s²]: 1.5

Saw blade data:

Idle speed saw blade [min-1]: 7000

Saw blade diameter [mm]: 190

Bore diameter [mm]: 20

Blade thickness [mm]: 1.35

Teeth thickness [mm]: 2.4

Dimensions:

Length (packaging excluded) [mm]: 245

Width (packaging excluded) [mm]: 315

Height (packaging excluded) [mm]: 260

Length Base plate [mm]: 150

Width Base plate [mm]: 300

Weight:

(packaging excluded) [kg]: 4
