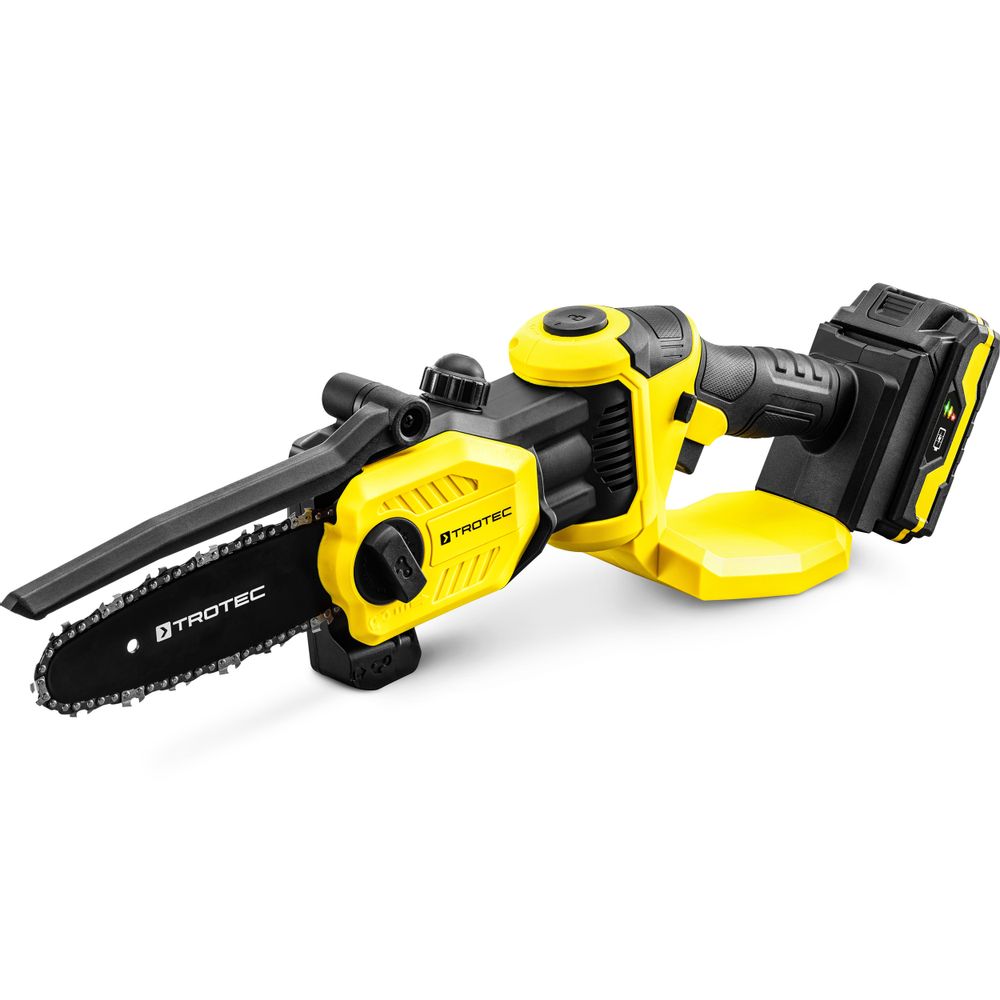

Trotec PCHS 10-20V Cordless Pruning Saw (3800min-1)

Technical data:

Idle speed rpm [min-1]: 3800

Guide rail groove width [mm]: 48

15 min.: ✓

Data chain:

Cutting speed (m / s) [m/s]: 4.8

Cutting length [mm]: 150

Guide rail length [mm]: 195

Max. cutting thickness [mm]: 150

Chain type: 6"

Sound values:

Sound pressure level LpA [dB(A)]: 84.1

Sound power level LwA [dB(A)]: 98

Uncertainty (K) Kpa / Kwa [(K)]: 3

Functions and features:

Infinitely variable speed control: ✓

Spindle lock: -

Laser: -

Handle, adjustable: 0-90°

Guard with retracting lever: ✓

Rip fence: -

Safety switch: ✓

Softgrip: ✓

Tool-free chain chain change: ✓

Non-return brake: -

Automatic chain oiler system: -

Accessories scope of delivery:

Protective cap: ✓

Changeable battery: ✓

Quick charger: ✓

Electrical values battery:

Battery nominal voltage [V]: 20

Battery capacity [Ah]: 2

Capacity indication: 3-stage

Battery type: Li-ion

Battery charging time [h]: 1

Charger:

Mains connection: 230 - 240 V, 50 Hz

Output voltage [V]: 21.5

Power input [W]: 65

Nominal current consumption [mA]: 2400

Connection plug: CEE 7/16

Cable length [m]: 1.5

Protection class: II

Dimensions:

Length (packaging excluded) [mm]: 90

Width (packaging excluded) [mm]: 530

Height (packaging excluded) [mm]: 150

Weight:

(packaging excluded) [kg]: 1.7
