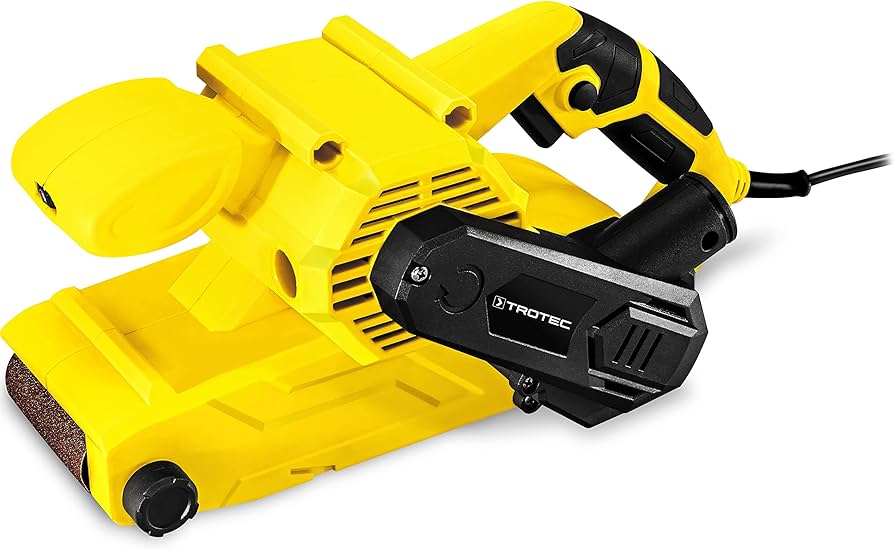

Trotec PBSS 10-900 Grinding Machine (1030 - 3270 min-1; 76 x 154 mm)

Technical data:

Power input [W]: 900

Speed selection [min‑1]: 1.030 - 3.270 min-1

Belt speed [m/min.]: 120 - 380 m/min.

Belt dimensions (W x L): 76 x 533 mm

Grinding surface: 76 x 154 mm

Electrical values:

Mains connection: 220 - 240 V, 50/60 Hz

Electric connection:

Connection plug: CEE 7/17

Cable length [m]: 4

Sound values according to EN 62841-2-4:

Sound pressure level [dB(A)]: 89

Sound power level [dB]: 100

Uncertainty (K) [(K)]: 3

Vibration information according to EN 62841-2-4:

Vibration emission value (ah) Main handle [m/s²]: 3.41

Uncertainty (K) Main handle [m/s²]: 1.5

Safety feature:

Protection class: II

Dimensions:

Length (packaging excluded) [mm]: 150

Width (packaging excluded) [mm]: 350

Height (packaging excluded) [mm]: 155

Weight:

(packaging excluded) [kg]: 2.5
