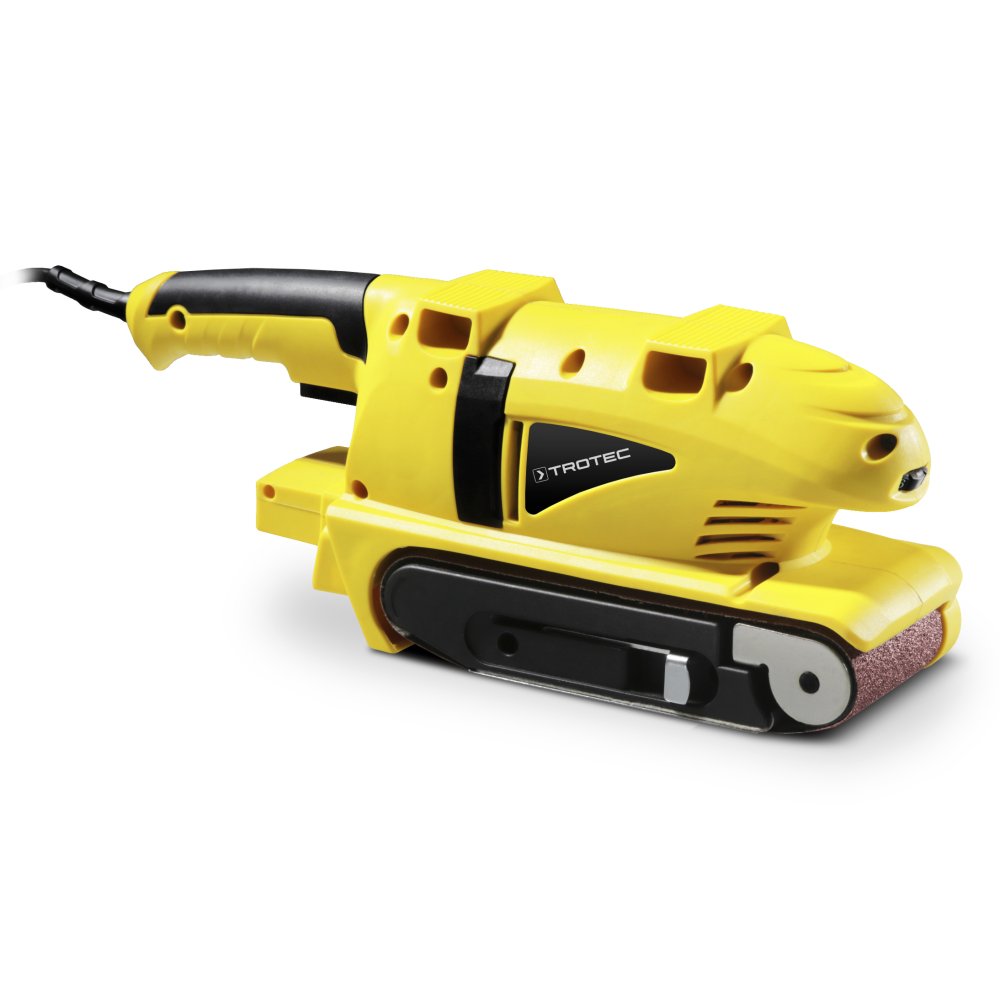

Trotec PBSS 10‑600 Grinding Machine (1450 - 2120 min-1; 75 x 130 mm)

Technical data:

Power input [W]: 600

Speed selection [min‑1]: 1.450 - 2.120 min-1

Belt speed [m/min.]: 170 - 250 m/min.

Belt dimensions (W x L): 75 x 457 mm

Grinding surface: 75 x 130 mm

Electrical values:

Mains connection: 230 - 240 V, 50 Hz

Electric connection:

Connection plug: CEE 7/17

Cable length [m]: 4

Sound values according to EN 62841-2-4:

Sound pressure level [dB(A)]: 88.6

Sound power level [dB]: 99.6

Uncertainty (K) [dB]: 3

Vibration information according to EN 62841-2-4:

Vibration emission value (ah) Front handle [m/s²]: 2.399

Uncertainty (K) Front handle [m/s²]: 1.5

Vibration emission value (ah) Main handle [m/s²]: 1.863

Uncertainty (K) Main handle [m/s²]: 1.5

Safety feature:

Protection class: II

Dimensions:

Length (packaging excluded) [mm]: 110

Width (packaging excluded) [mm]: 365

Height (packaging excluded) [mm]: 145

Weight:

(packaging excluded) [kg]: 2
