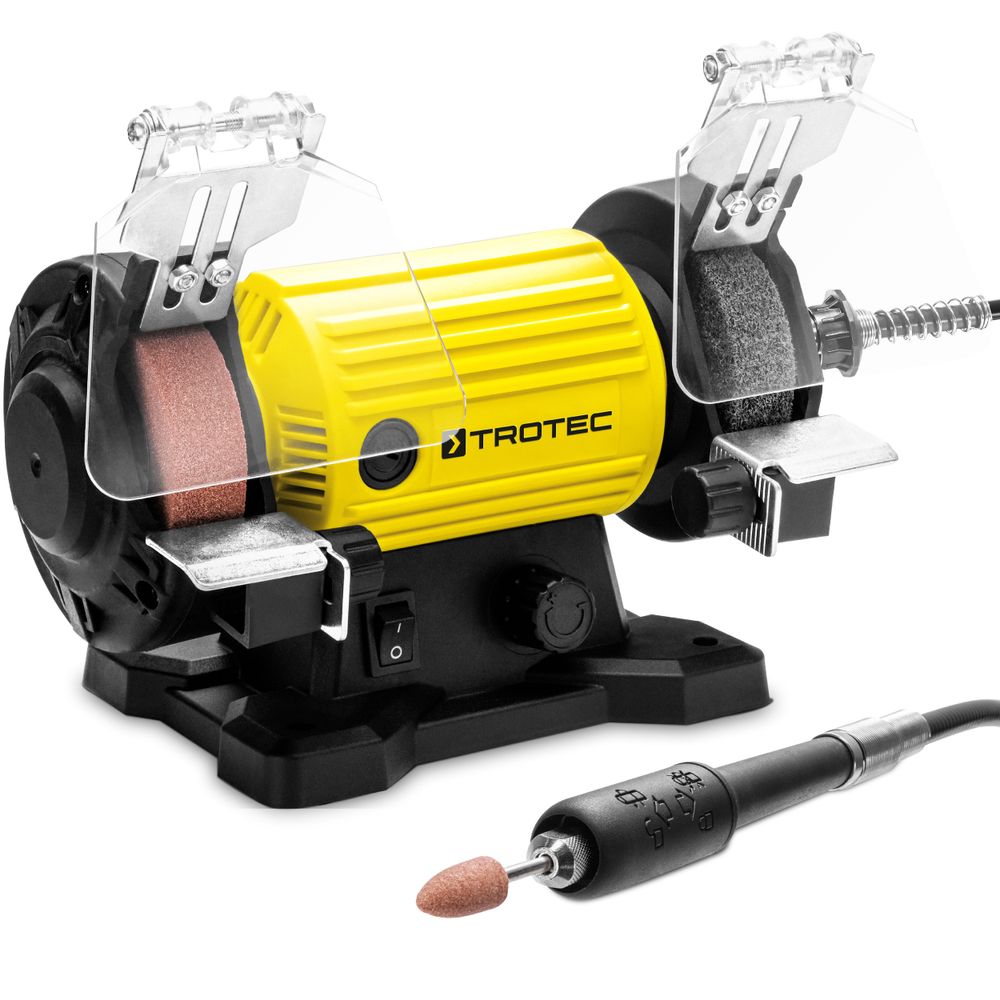

Trotec PBGS 10-120 Grinding Machine (0 - 11500 min-1; 120 W)

Technical data:

Power input [W]: 120

Idle speed: 0 - 11.500 min-1

Operating speed [m/s]: 45

Abrasive wheel diameter: Ø 75

Electrical values:

Mains connection: 230 V, 50 Hz

Electric connection:

Connection plug: CEE 7/17

Cable length [m]: 2

Sound values according to EN 62841:

Sound pressure level [dB(A)]: 86

Sound power level [dB]: 99

Uncertainty (K) [K]: 3

Safety feature:

Protection class: II

Technical data abrasive wheels:

Outer diameter [mm]: 75

Hole [mm]: 10

Thickness [mm]: 20

Grain size Abrasive wheel: 120

Grain size Polishing disc: 400

Hardness: M

Dimensions:

Length (packaging excluded) [mm]: 115

Width (packaging excluded) [mm]: 250

Height (packaging excluded) [mm]: 150

Weight:

(packaging excluded) [kg]: 2
