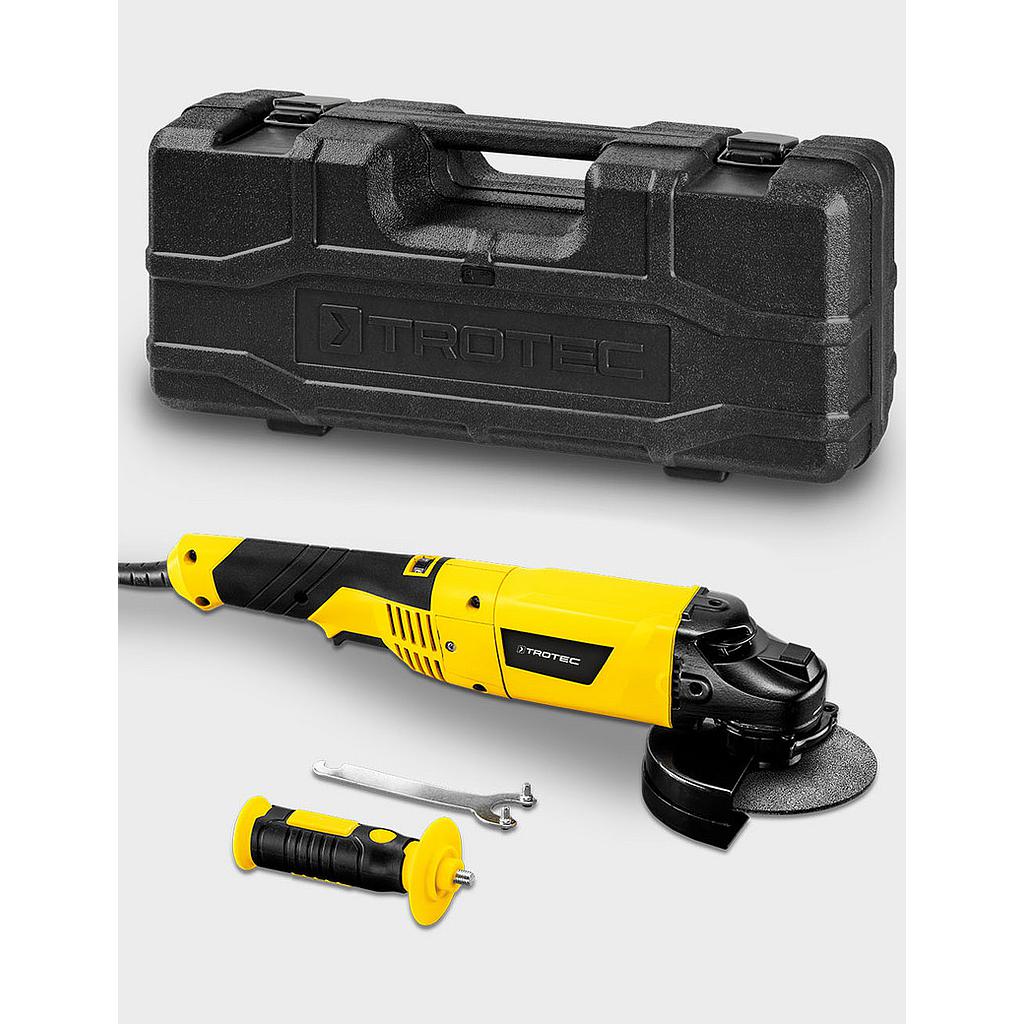

Trotec PAGS 10-125 Angle Grinder (1200 W; 5000 - 12000 min-1)

Technical data:

Rated speed: 5.000 - 12.000 min-1

Spindle thread: M14

Type of protection: IP20

Protection class: II

Disc size [mm]: 125

Electrical values:

Power input [W]: 1200

Mains connection: 230 V, 50 Hz

Connection plug: CEE 7/17

Cable length [m]: 3

Sound values according to EN 60745:

Sound pressure level [dB(A)]: 91

Sound power level [dB(A)]: 102

Uncertainty K [dB]: 3

Vibration information according to EN 60745:

Vibration emission value (ah) Main handle [m/s²]: 13.43

Uncertainty (K) Main handle [m/s²]: 1.5

Vibration emission value (ah) Additional handle [m/s²]: 9.77

Uncertainty (K) Additional handle [m/s²]: 1.5

Data cutting disc:

Idle speed [min-1]: 12250

Max. disc speed [m/s]: 80

Cutting disc diameter [mm]: 125

Bore diameter [mm]: 22.23

Cutting disc thickness [mm]: 3.2

Functions and features:

On/off switch with safety switch: ✓

Soft start: -

Spindle lock: ✓

Additional handle 3 mounting options: ✓

Infinitely variable speed control: ✓

Softgrip: ✓

Accessories scope of delivery:

Cutting disc: ✓

Wrench: -

Pin-type face wrench: ✓

Protective cover: ✓

Additional handle: ✓

Transport case: ✓

Dimensions:

Length (packaging excluded) [mm]: 100

Width (packaging excluded) [mm]: 420

Height (packaging excluded) [mm]: 120

Weight:

(packaging excluded) [kg]: 2.5

Manual
