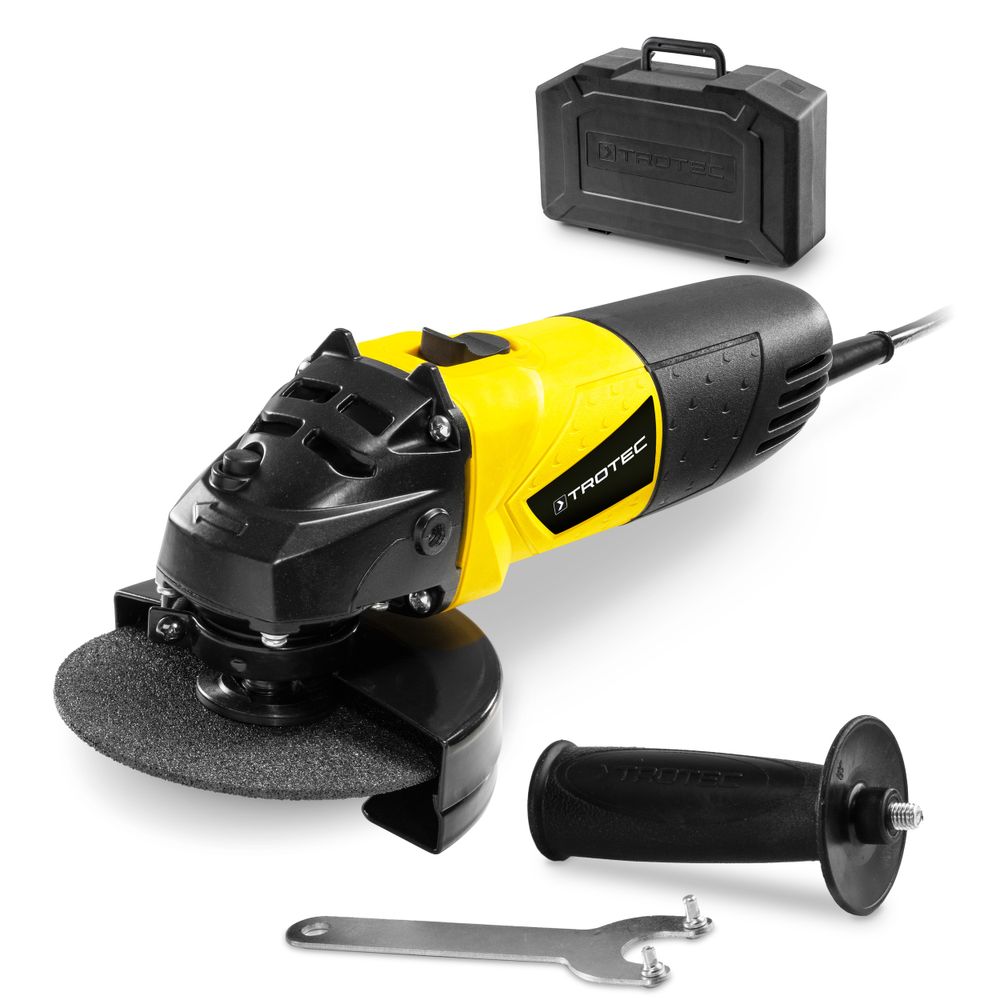

Trotec PAGS 10-115 Angle Grinder (500 W; 12000 min-1)

Technical data:

Rated speed [min-1]: 12000

Spindle thread: M14

Type of protection: IP20

Protection class: II

Disc size [mm]: 115

Electrical values:

Power input [W]: 500

Mains connection: 230 - 240 V, 50 Hz

Connection plug: CEE 7/17

Cable length [m]: 2.5

Sound values according to EN 60745:

Sound pressure level [dB(A)]: 90

Sound power level [dB(A)]: 101

Uncertainty K [dB]: 3

Vibration information according to EN 60745:

Vibration emission value (ah) Main handle [m/s²]: 5.78

Uncertainty (K) Main handle [m/s²]: 1.5

Vibration emission value (ah) Additional handle [m/s²]: 5.78

Uncertainty (K) Additional handle [m/s²]: 1.5

Data cutting disc:

Idle speed [min-1]: 13300

Max. disc speed [m/s]: 80

Cutting disc diameter [mm]: 115

Bore diameter [mm]: 22.23

Cutting disc thickness [mm]: 3

Functions and features:

On/off switch with safety switch: -

Soft start: -

Spindle lock: ✓

Infinitely variable speed control: -

Softgrip: -

Accessories scope of delivery:

Cutting disc: ✓

Wrench: -

Pin-type face wrench: ✓

Protective cover: ✓

Additional handle: ✓

Transport case: ✓

Dimensions:

Length (packaging excluded) [mm]: 120

Width (packaging excluded) [mm]: 300

Height (packaging excluded) [mm]: 120

Weight:

(packaging excluded) [kg]: 1.5
