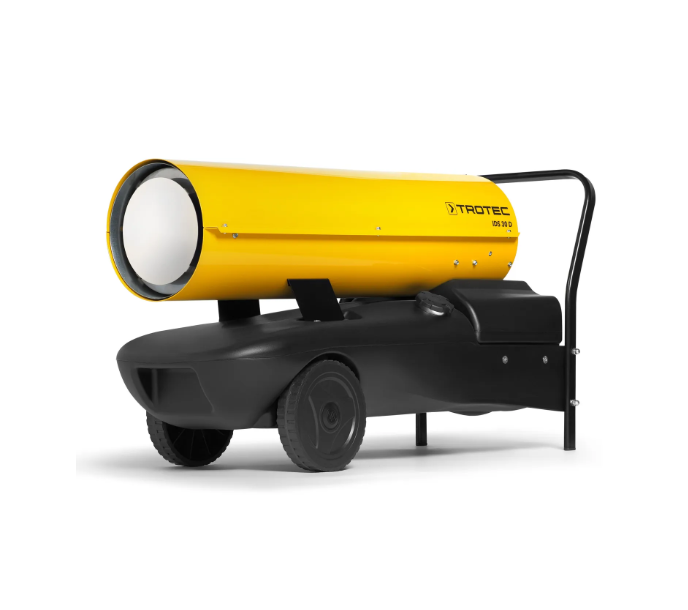

Trotec IDS 30 D Oil heater fan (605 m³/h)

Method of heating: direct

Amount of air [m³/h]: 605

Fan: Axial fan

Max. nominal heat input [kW]: 605

Nominal heat output [kW (kcal)]: 38.4 (33,020)

Increase in temperature ΔT [°C]: 75

Input voltage [V / Hz]: 230 / 50

Current consumption [A]: 1.25

Max. oil consumption [l / h]: 3.66

Air transport hose connector ø [mm]: –

Chimney connection ø [mm]: -

Thermostat connection: series

Tank capacity [l]: 42

Sound level (distance 1 m) [dB(A)]: 69

Length [mm]: 1,050

Width [mm]: 400

Height [mm]: 520

Weight [kg]: 20
