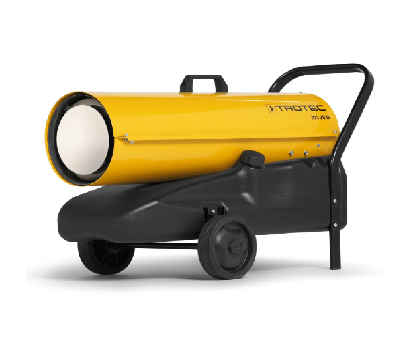

Trotec IDS 20 D Oil heater fan (350 m³/h)

Method of heating: direct

Amount of air [m³/h]: 350

Fan: Axial fan

Max. nominal heat input [kW]: 20

Nominal heat output [kW (kcal)]: 20 (17,200)

Increase in temperature ΔT [°C]: 100

Input voltage [V / Hz]: 230 / 50

Current consumption [A]: 1.0

Max. oil consumption [l / h]: 2.04

Air transport hose connector ø [mm]: –

Chimney connection ø [mm]: -

Thermostat connection: -

Tank capacity [l]: 17

Sound level (distance 1 m) [dB(A)]: 67

Length [mm]: 720

Width [mm]: 300

Height [mm]: 450

Weight [kg]: 20
