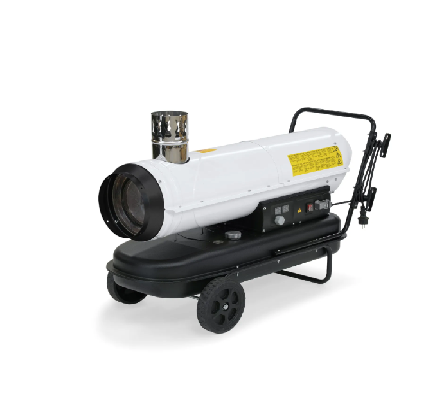

Trotec IDE 30 Oil heater fan (780 m³/h)

Method of heating: indirect

Amount of air [m³/h]: 780

Fan: Axial fan

Nominal heat output [kW (kcal)]: 30 (25,000)

Increase in temperature ΔT [°C]: 95

Input voltage [V / Hz]: 230 / 50

Current consumption [A]: 1.5

Max. oil consumption [l / h]: 2.4

Outlet nozzle / hose connection ø [mm]: 300

Chimney connection ø [mm]: 120

Integrated thermostat: Series

Thermostat connection: Series

Fuel feed: Danfoss pump

Fuel filter: Series

Tank capacity [l]: 50

Sound level (distance 1 m) [dB(A)]: 75

Length [mm]: 1,107

Width [mm]: 498

Height [mm]: 776

Weight [kg]: 34.5
