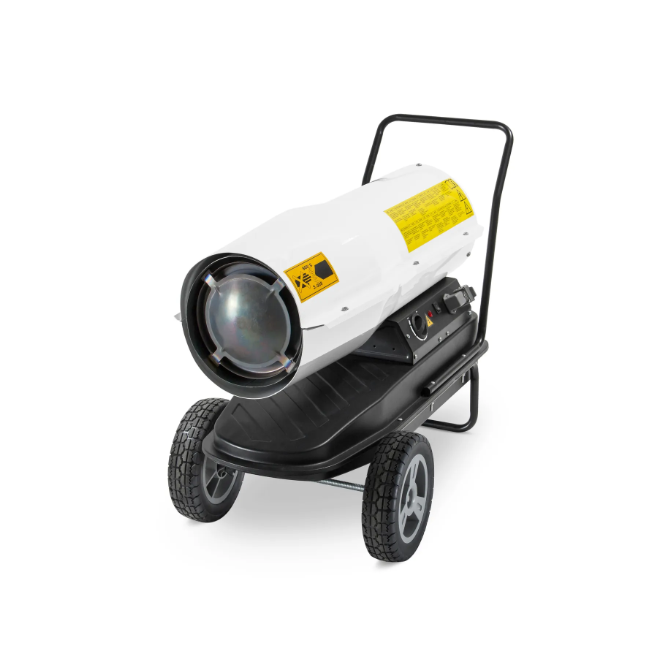

Trotec IDE 30 D Oil heater fan (720 m³/h)

Method of heating: direct

Amount of air [m³/h]: 720

Fan: Axial fan

Nominal heat output [kW (kcal)]: 30 (25,800)

Increase in temperature ³ ΔT [°C]: 210

Input voltage [V / Hz]: 230 / 50

Current consumption [A]: 1.25

Max. oil consumption [l / h]: 2.8

Outlet nozzle / hose connection ø [mm]: -

Chimney connection ø [mm]: -

Integrated thermostat: Series

Thermostat connection: Series

Fuel feed: Compressor

Fuel filter: -

Tank capacity [l]: 19

Sound level (distance 1 m) [dB(A)]: 76

Length [mm]: 830

Width [mm]: 430

Height [mm]: 560

Weight [kg]: 18
