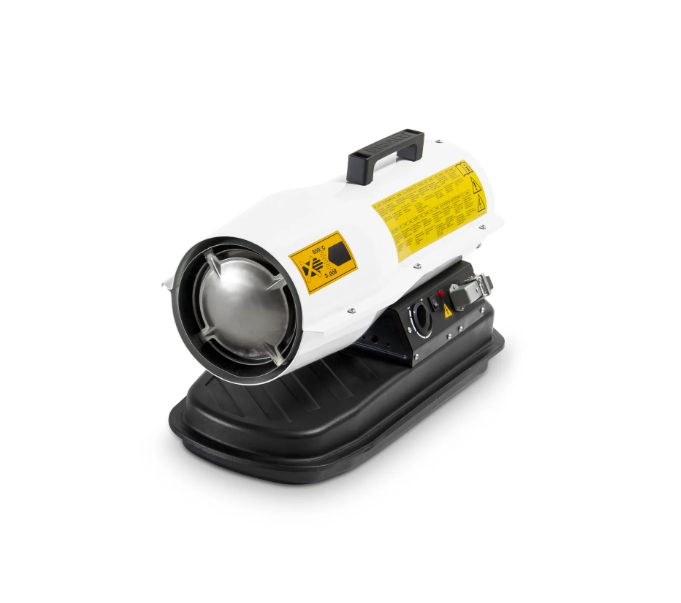

Trotec IDE 20 D Oil heater fan (550 m³/h)

Method of heating: direct

Amount of air [m³/h]: 550

Fan: Axial fan

Nominal heat output [kW (kcal)]: 20 (17,200)

Increase in temperature ΔT [°C]: 140

Input voltage [V / Hz]: 230 / 50

Current consumption [A]: 0.71

Max. oil consumption [l / h]: 1.9

Outlet nozzle / hose connection ø [mm]: -

Chimney connection ø [mm]: -

Integrated thermostat: Series

Thermostat connection: Series

Fuel feed: Compressor

Fuel filter: -

Tank capacity [l]: 12

Sound level (distance 1 m) [dB(A)]: 76

Length [mm]: 650

Width [mm]: 265

Height [mm]: 395

Weight [kg]: 10
