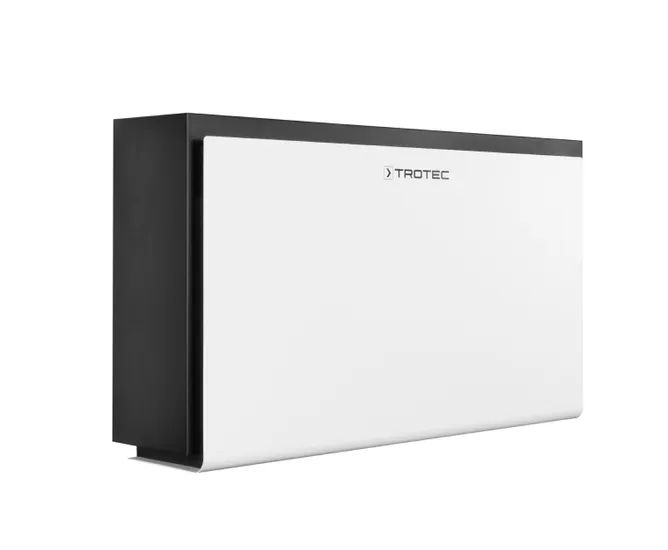

Trotec DH 60 VPR+ Dehumidifier (90 l/24h ; 1065 m³/h)

Dehumidification performance

At 20 °C / 60 % RH [l/24h]: 38

At 30 °C / 80 % RH [l/24h]: 90

Power supply: 1/N/PE~ 230 V / 50 Hz

Power cable : CEE 7/7 / l = 3.5 m

Power input dehumidification : 1.2 kW

Power input ventilation : 85 W

Nominal/peak current : 7.5 A / 30 A

Heat emission at 15 °C : 2.3 kW

Coefficient of performance (COP *): 2.9

Refrigerant : R-407C

Amount of refrigerant : 800 g

GWP (Global Warming Potential) : 1774

CO2 equivalent : 1.419 t

Air flow rate (freely blowing, stage 2) : 1,065 m³/h

Sound pressure level (3 m distance) : 54 dB(A)

Operating range temperature : 5 °C to 40 °C

Setting range relative humidity : 30 % to 60 % RH

Max. permissible relative humidity : 90 % RH

Max. pump height of the condensate pump : 15 m

Condensation drain hose :

Weight: 90 kg

Dimensions (width x depth x height) incl. wall holder: 1.255 x 280 x 690 mm

Standard faceplate: steel, white powder-coated

Minimum distance to walls or other objects:

A: top:12.5 cm

B: bottom:12.5 cm

C: side:12.5 cm

D: front:12.5 cm

* The COP is the ratio of the generated cooling capacity or heat output to the electrical power input.:
