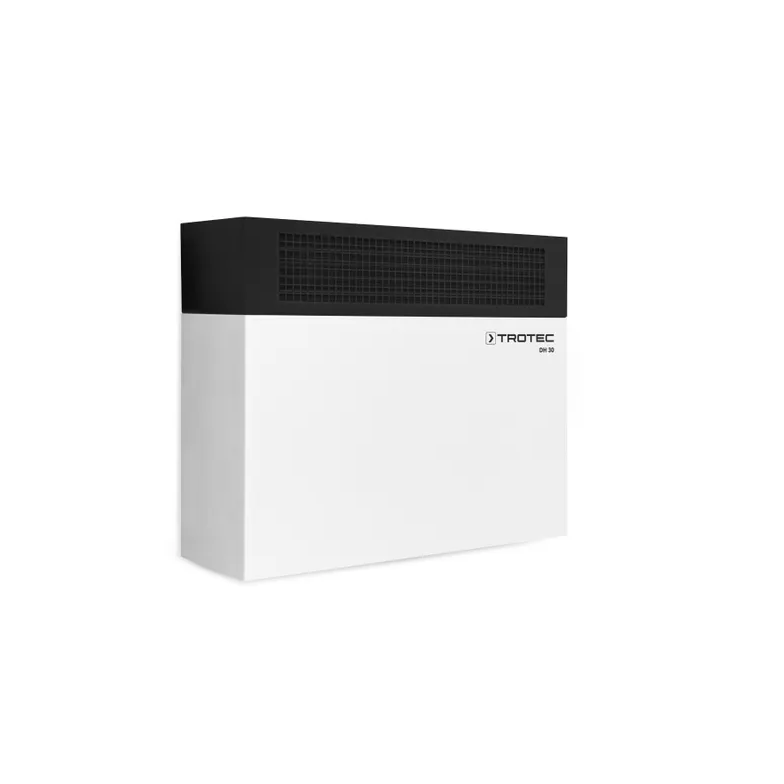

Trotec DH 30 Industrial Condenser Dryer (52 l/24h; 635 m³/h)

Dehumidification performance: At 20 °C / 60 % RH [l/24h]: 20; At 30 °C / 80 % RH [l/24h]: 46

Power supply: 220-240 V -50 Hz

Power cable: CEE 7/7/13.5 m

Power input: 922 W

Nominal/peak current: 4.2 A/15.8 A

Heat emission: 1.9 kW

Coefficient of performance: 2.5

Refrigerant: R-407C

GWP factor: 1.773.85

CO2 equivalent: 0.887 t

Amount of refrigerant: 500 g

Air volume (freely blowing): 635 m3/h

Sound pressure level @ 3 m: 52 dB(A

Operating range temperature: 5 to 40 °C

Setting range relative humidity: 30% to 60% RH

Max. permissible relative humidity: 90 % RH

Weight: 47 kg

Dimensions (length x width x height) incl. wall holder: 255 x 790 x 651 mm

Minimum distance to walls or other objects:

A: top: 12.5 cm

B: bottom: 12.5 cm

C: side: 12.5 cm

D: front: 12.5 cm
