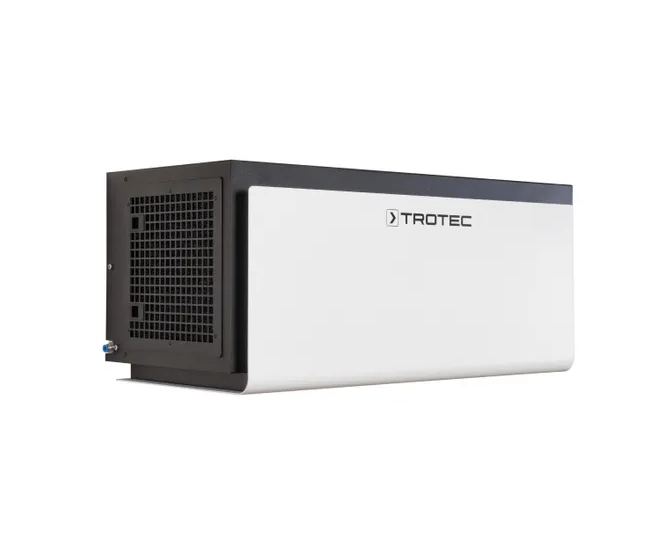

Trotec DH 15 VPR+ Dehumidifier (22 l/24h; 250 m³/h)

Dehumidifying capacity max.: 22 l / 24 h

Mains connection: 1/N/PE~ 230 V / 50 Hz

Power cable: CEE 7/7 / l = 3.5 m

Power input dehumidification: 0.43 kW

Power input ventilation :32 W

Nominal/peak current: 3.8 A / 18 A

Heat emission at 30 °C and 75 % RH: 0.9 kW

Coefficient of performance(COP *): 1.6

Refrigerant: R-407C

Amount of refrigerant: 340 g

GWP factor: 1,774

CO2 equivalent: 0.603 t

Air volume (freely blowing): 250 m³/h

Sound pressure level @ 3 m: 50 dB(A)

Operating range temperature: 5 to 40 °C

Setting range relative humidity: 30 % to 60 % RH

Max. permissible relative humidity: 90 % RH

Max. pump height of the condensate pump: 10 m

Condensation drain hose: ø 8 mm (outside), l = 10 m

Weight: 47 kg

Dimensions (width x depth x height) incl. wall holder: 829 x 395 x 339 mm

Standard faceplate: steel, white powder-coated

Minimum distance to walls or other objects:

A: top:12.5 cm

B: bottom:12.5 cm

C: side:12.5 cm

D: front:12.5 cm

* The COP is the ratio of the generated cooling capacity or heat output to the electrical power input.

Datasheet
