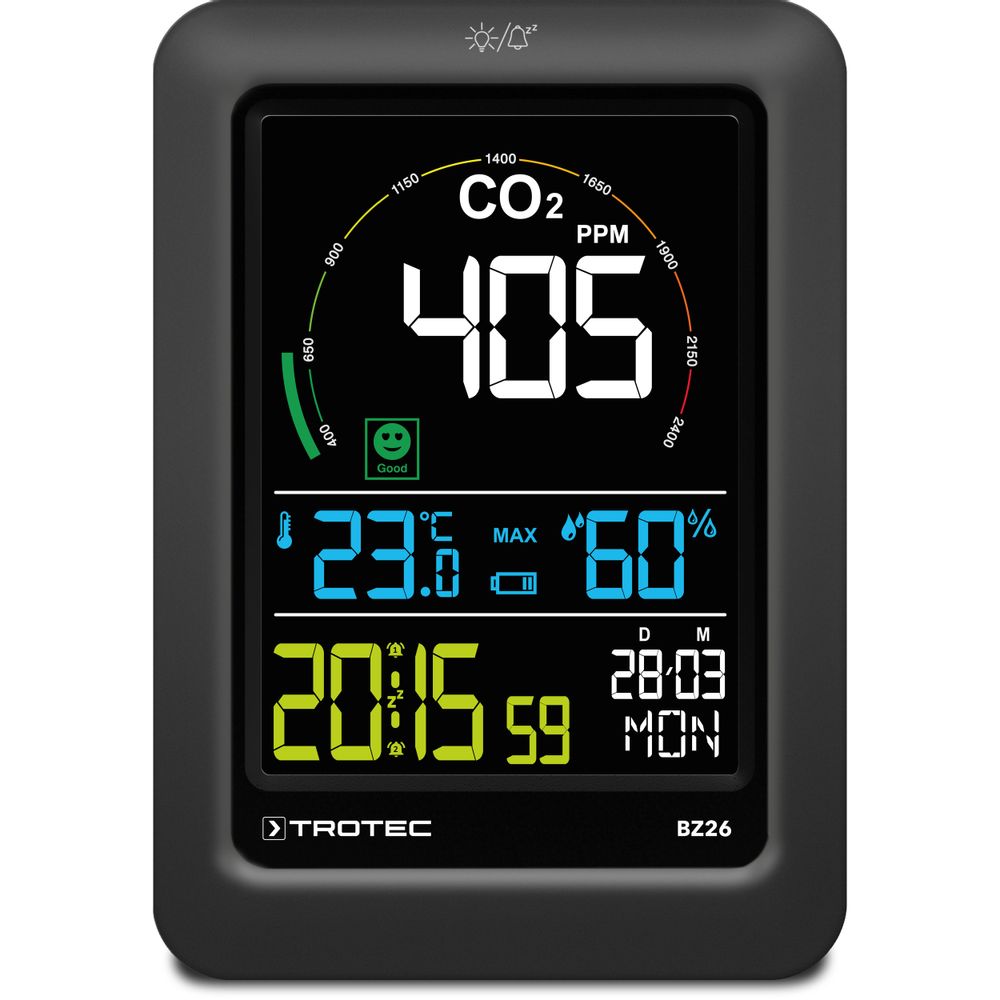

Trotec BZ26 CO2 Air Quality Monitoring Device (0 - 5000 ppm CO2; -9.9/60°C, 20/95%r.F.)

Display: LCD display

Carbon dioxide (ppm)

Carbon dioxide sensor: PAS sensor (photoacoustic spectroscopy)

Measuring range: 400 to 5000 ppm

Accuracy: ±50 ppm + 5 %

Resolution: 1 ppm

Measuring frequencycarbon dioxide: every 6 seconds

Relative humidity

Measuring range: 20 % RH to 95 % RH

Accuracy: ±5 % RH with 40 % to 80 % ; ±8 % RH with 20 % to 39 % and 81 % to 95 %

Resolution: 1 %

Measuring frequency humidity level: every 30 seconds

Air temperature

Measuring range: -9.9°C to 60°C (14.18°F to 140°F)

Accuracy: < 0 °C: ± 2°C; 0 °C to 40 °C: ± 1 °C; > 40 °C: ± 2°C

Resolution: 0.1 °C/°F

Measuring frequency air temperature: every 30 seconds

Ambient conditions

Operation: -5 °C to 50 °C (23 °F to 122 °F) and 90 % RH (non-condensing)

Storage: -5 °C to 50 °C (23 °F to 122 °F) and 90 % RH (non-condensing)

Power supply: external optionally 3 batteries 1.5 V. type AAA (included in the scope of delivery)

Dimensions (depth x width x height): 22 mm x 89 mm x 125 mm

Weight (packaging excluded): 165 g

Scope of delivery

• 1 x Device BZ26

• 1 x USB cable

• 3 x Battery 1.5 V AAA alkaline

• 1 x Quick guide

Manual
