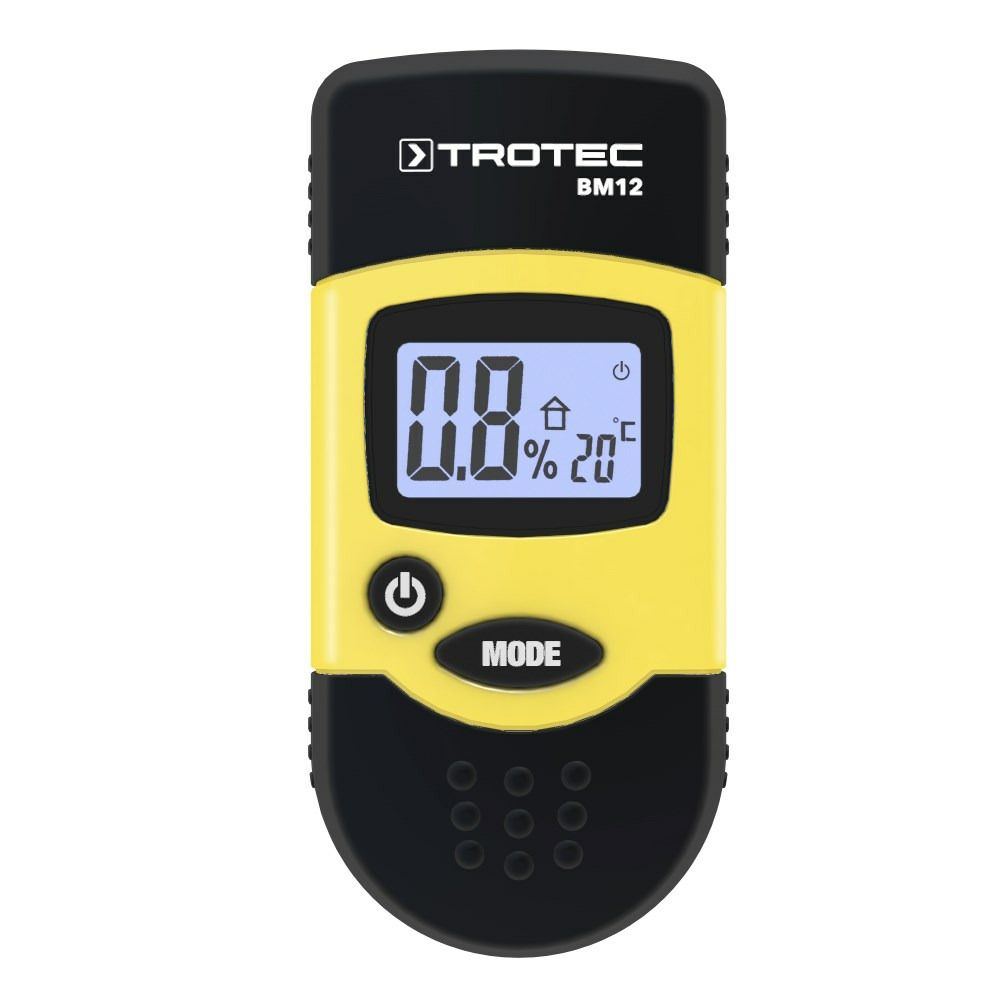

Trotec BM12 Moisture Meter (6 - 44 %, 0.2 - 2.0 %)

Measurement principle: resistance measuring method

Measuring range:

+ Wood moisture: 6 to 44 %

+ Building moisture: 0.2 to 2.0 %

+ Temperature: 0 to 40 °C (32 to 104 °F)

Measuring range resolution:

+ Wood moisture: 1 %

+ Building moisture: 0.1 %

+ Temperature: 1 °C

Accuracy:

+ Wood moisture measured value until 30 %: ± 2 %

+ Wood moisture measured value from 30 %: ± 4 %

+ Building moisture measured value until 1.4 %: ± 0.1 %

+ Building moisture measured value from 1.4 %: ± 0.2 %

+ Temperature: ±1 °C

Ambient temperature: 0 to 50 °C with 0 to 85 % RH

Power supply: 4 x button cells 1.5 V, LR44

Automatic switch-off: after approx. 2 minutes

Dimensions: (length x width x height) 96 x 20 x 40 mm

Weight: 83 g

Scope of delivery

• 1 x Device BM12

• 4 x button cells 1.5 V, type LR44

• 1 x protective cap

• 1 x electrode tips set (2.2 x 8 mm)

• 1 x Quick guide
