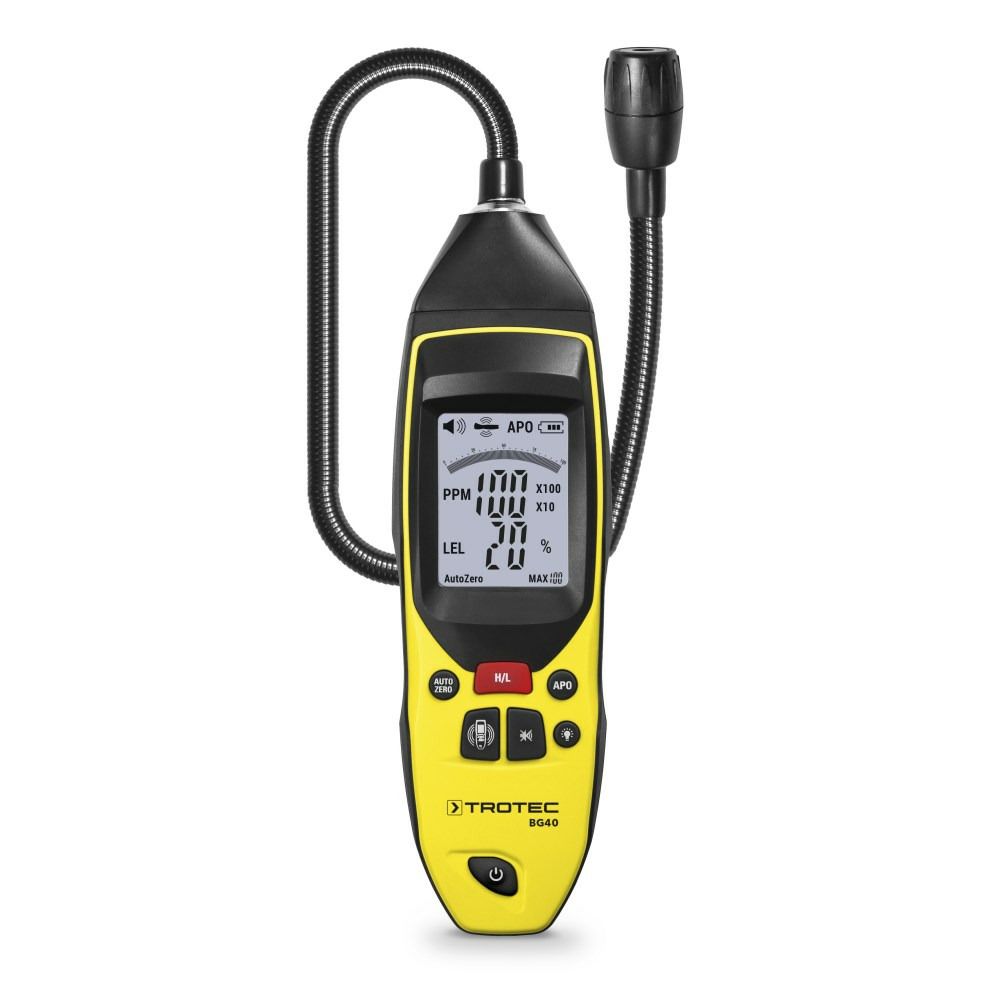

Trotec BG40 Gas Detector (0 ~ 10000 ppm)

Measuring range: 0 to 10000 ppm

Accuracy (repeatable): 50 ppm

Response time: 2 s

Sensitivity: < 10 ppm (methane)

Standard calibration: Methane

Detectable gases: Natural gas, methane, ethane, ethene, hexane, benzene, propane, ethylene, iso-butane, ethanol, acetaldehyde, formaldehyde, toluene, p-xylene, alcohol, ammonia, water vapour, petrol, turbine fuel, hydrogen, hydrogen sulphide, smoke, industrial solvents, paint thinners, naphtha, carbon monoxide.

Measuring range adjustment: x10< 1,000l; x100 < 10,000

Warm-up time: Approx. 40 s

Power supply: 1 x 3.7 V / polymer Li-ion battery

Operating conditions: 0 to 40 °C with 10 to 85 % RH

Storage conditions: -10 to +60 °C

Dimensions(length x width x height): 45 x 60 x 220 (mm) (without probe)

Probe length: 400 mm

Weight: 410 g

Scope of delivery

• 1 x Device BG40

• 1 x Charger

• 1 x Quick guide
