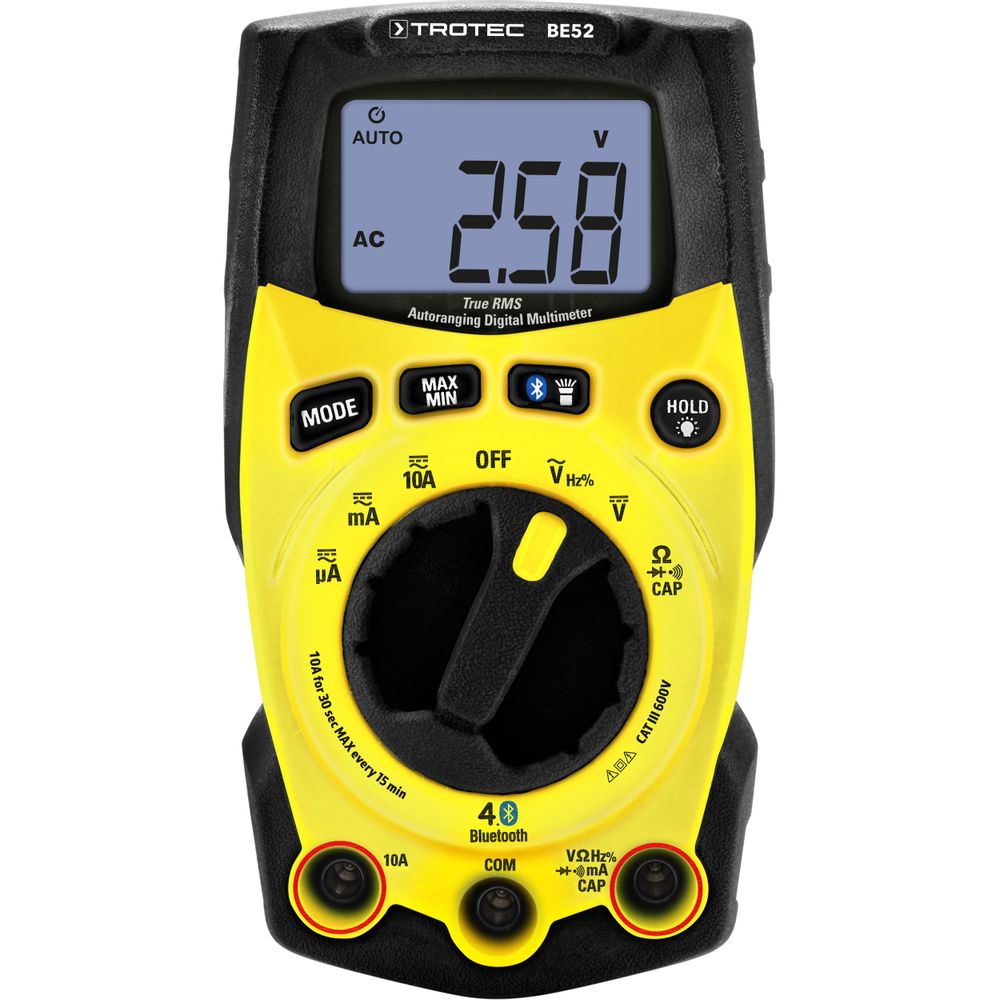

Trotec BE52 Digital Multimeter (600 V/10 A/ 40 MΩ; CAT III 600 V)

Insulation: double

Diode test: Test current of 0.3 mA; test voltage < 3.3 V DC typically

Continuity test: An acoustic signal is emitted if the resistance amount to less than 50 Ω. Test current: < 0.5 mA

LC display: 3 3/4 digits; 4000 count LCD; with background illumination

Exceedance of the measuring range(outside limits): OL will be displayed.

Polarity: Automatic (no indication for positive);minus (-) sign for negative

Measuring speed: 2 x per second; nominal

Bluetooth frequency range: 2.4 GHz

Bluetooth max. transmission power: 0 dBm

Battery indication: The battery icon will be displayedwhen the battery voltage drops below the operating voltage threshold.

Battery: 2 x 1.5 V; type AAA

Fuses: µA/mA range: 500 mA / 600 V; 10 A range: 10 A / 600 V (measurement up to 10 A for 30 seconds possible. Afterwards a break of 15 minutes must be observed.)

Operating temperature: 5°C to 40°C (41°F to 104°F)

Storage temperature: -20°C to 60°C (-4°F to 140°F)

Relative humidity for operation: < 80 % to 31 °C (87 °F); linearlydecreasing to 50 % at 40 °C (104 °F)

Relative humidity for storage: < 80 %

Operating height above sea level : Max. 2000 m (7000 ft)

Type of protection: IP40

Weight: approx. 140 g

Dimensions (length x width x height): 121 x 67 x 45 mm

Automatic switch-off : after approx. 15 minutes of non-use

Safety This measuring device is designed for indoor use and complies with overvoltage category CAT III (600 V).

Measuring ranges

DC voltage (V DC): 400 mV~600 V

AC voltage (V AC. 50 / 60 Hz): 4V~600 V

Direct current (A DC): 400 µA~10 A

Alternating current (A AC): 400 µA~10 A

Capacitance (nF): 40 nF~4000 μF

Resistance (Ω): 400 Ω~40 MΩ

Frequency / duty cycle: 9.99 Hz~9999 Hz

Duty cycle %: 1-99 %

Pulse width: 100 μs to 100 ms; frequency: 5 Hz to 100 kHz

Scope of delivery

• 1 x device BE52

• 2 x Measuring tip

• 2 x 1.5 V battery AAA

• 1 x Quick guide
