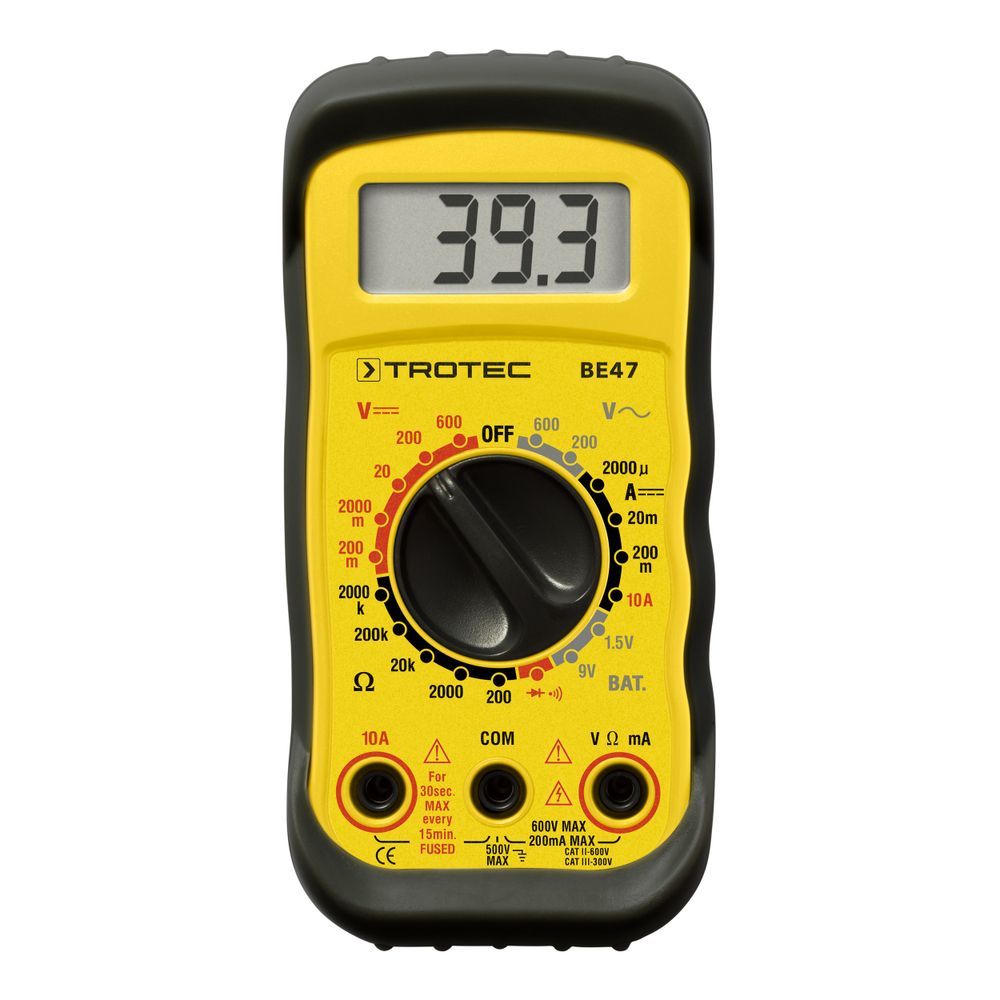

Trotec BE47 Multi-Meter (600 V / 10 A / 2 MΩ; CAT III 600 V)

Diode test: Max. testing current of 1 mA; opencircuit voltage of 2.8 V DC (typically)

Continuity test: An acoustic signal is emitted if theresistance amount to less than 30 Ω.

Battery testing current: 9 V (6 mA); 1.5 V (100 mA)

Input impedance: >1 MΩ

V AC range: 45 Hz to 450 Hz

A DC voltage drop: 200 mV

LC display: 3 ½ digits. 2000 count LCD. 0.5 inch digits

Measuring range exceeded: OL will be displayed.

Polarity: Automatic (no indication for positive); minus (-) sign for negative

Measuring speed: 2 x per second. nominal

Battery indication: BAT is indicated if the battery voltage drops below the operating voltage threshold

Battery: 9 V monobloc battery

Fuses: mA. µA range: 0.5 A/600 V (fast acting) A range: 10 A / 600 V (fast acting)

Operating temperature: 0°C to 50°C (32°F to 122°F)

Storage temperature: -20°C to 60°C (-4°F to 140°F)

Relative humidity: Operation: <70 %; Storage: <80%

Operating height above sea level: Maximum 2000 m (7000 ft)

Weight : 260 g (9.17 oz.)

Dimensions: 121.5 x 60.6 x 40 mm(4.78" x 2.38" x 1.57")

Safety: This measuring device is designed for indoor use and complies with overvoltage category CAT II 600 V / CAT III 300 V. pollution level 2.

Measuring ranges

DC voltage (V DC): 200 mV~600V

AC voltage (V AC. 50 / 60 Hz): 200 V~600V

Direct current (A DC): 2000 µA~10A

Resistance (Ω): 200 Ω~2000 kΩ

Battery test: 1.5V~9V

Scope of delivery

• 1 x Multimeter

• 1 x Safety measuring lines with test probes

• 1 x 9 V monobloc battery

• 1 x Quick guide
