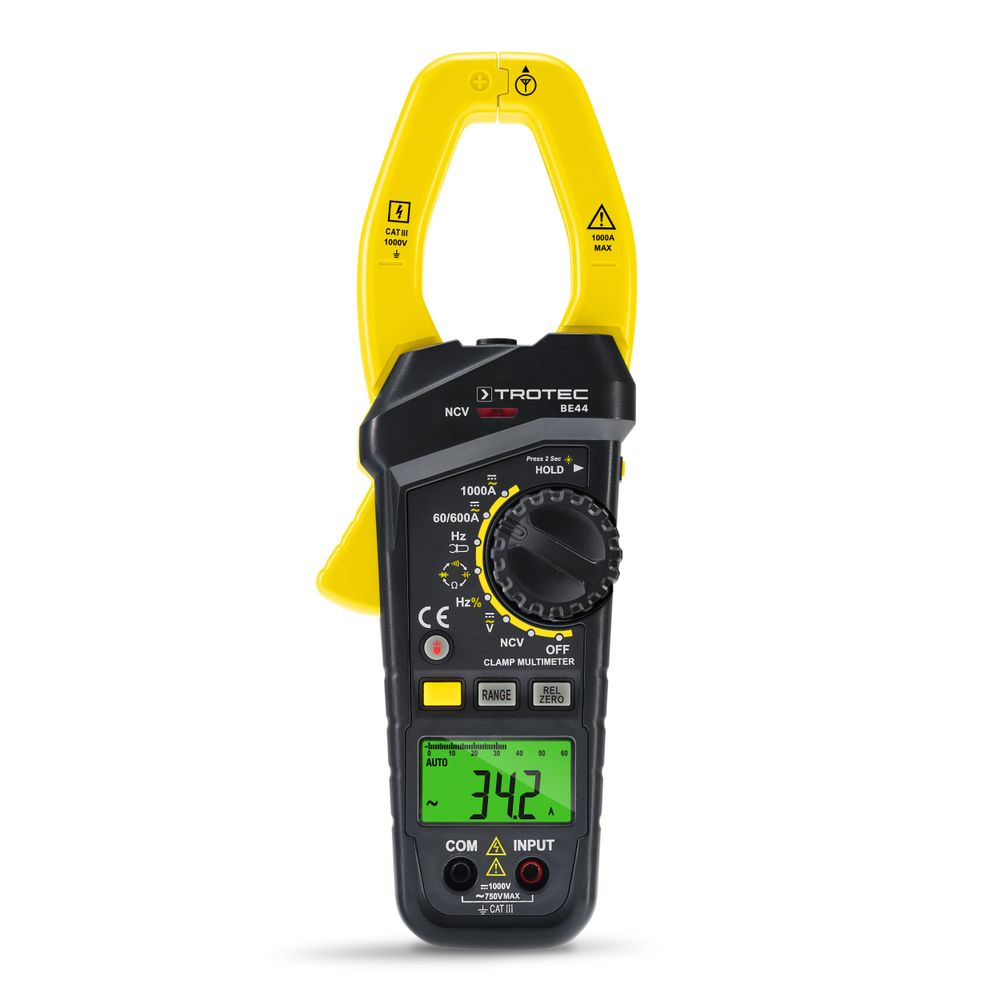

Trotec BE44 Current clamp (1000 A AC/DC / 1000 V/DC 750 V/A; CAT III (1000 V))

Weight: 372 g (incl. batteries)

Dimensions (height x width x depth): 243 x 87 x 44 mm

Max. diameter of conductor :Approx. 38 mm

Measuring rate: 3 per second

Input resistance (VAC and VDC): 10 MΩ

Frequency range alternating current: 50/60 Hz (AAC)

Frequency range AC voltage: 40–400 Hz (VAC)

Ambient conditions: 0 °C to 40 °C with up to 75 % RH

Storage conditions: -30 °C to 60 °C with up to 85 % RH

Type of protection: IP20

Batteries: 3 x 1.5 V AAA

Overvoltage protection: Category lll 1000 V

Measuring ranges

AC voltage (V/AC): 6V~750V

DC voltage (V/DC): 6V~1000V

Alternating current (A/AC): 60A~1000A

Direct current (A/DC): 6A~1000A

Resistance (Ω): 600 Ω~60 MΩ

Frequency using measuring cables (Hz): 9.999 Hz~9.999 MHz

Frequency using clamp (Hz): 40 Hz - 999.9 Hz

Duty cycle: 5 % ~ 95 %

Capacitance (C): 40 nF~4000 µF

Scope of delivery

• 1 x Device

• 1 x Red measuring cable

• 1 x Black measuring cable

• 1 x Label with safety information

• 3 x 1.5 V battery AAA

• 1 x Manual
