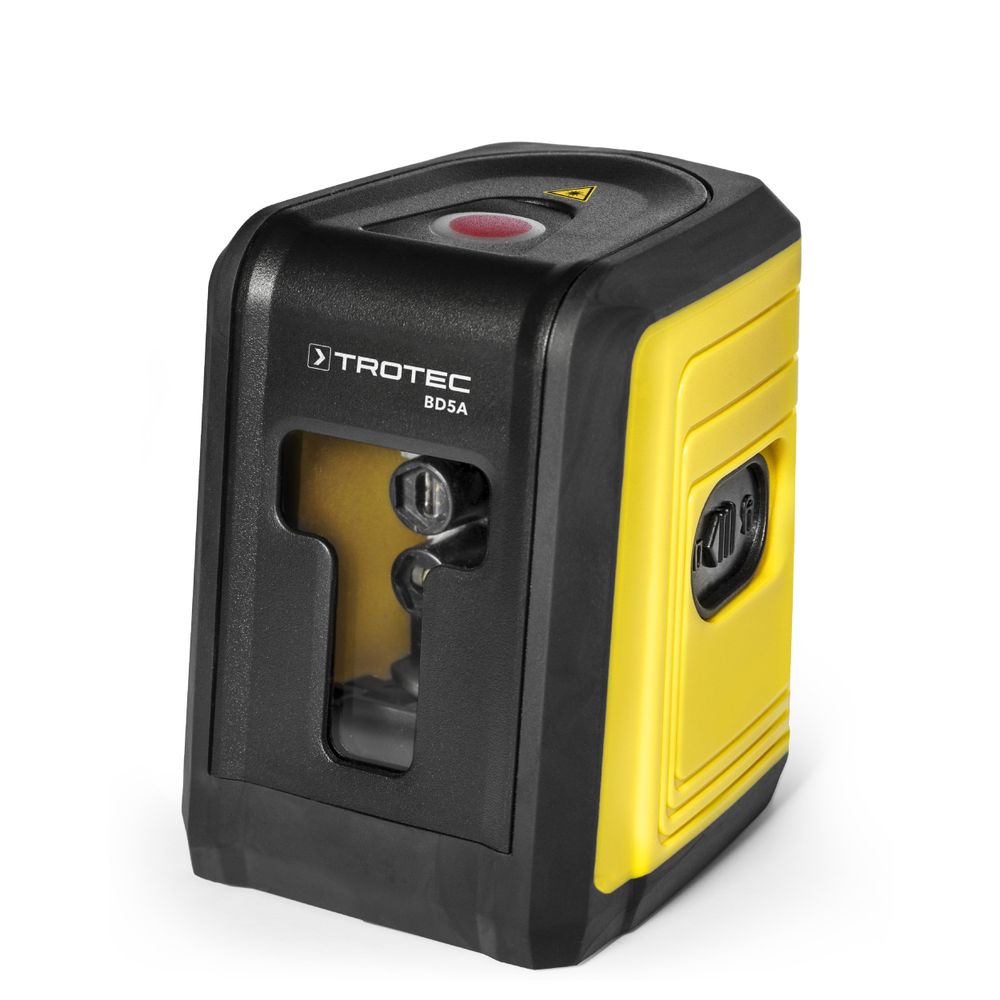

Trotec BD5A Cross-Line Laser (±4 °)

Nivellierung:

Nivellierungsbereich [°]: ±4 °

Laser:

Accuracy – laser: ±0.8 mm/m (at 0 °)

Accuracy – laser: ±1 mm/m (at ≤4 °)

Range [m]: 10 m

Laserfarbe: rot

class: 2

output < [mW]: 1

wavelength [nm]: 650

Display: Multifunctional LED: ✓

Device control:

Button: ✓

Slide switch: ✓

Housing design: Plastics: ✓

Type of protection: IP40: ✓

Power supply:

Internal (battery): 2 x 1.5 V, AA

Ambient conditions:

Operation - min. temperature [°C]: -20

Operation - max. temperature [°C]: 50

Functions and features:

Cardanic automatic levelling: ✓

Intuitive operation: ✓

Projection of individual or cross lines (horizontal & vertical): ✓

Laser locking function (transport protection) and possibility of inclination: ✓

¼ inch tripod thread: ✓

Multi-functional support arm: ✓

Individual/total activation of the integrated lasers: ✓

Dimensions:

Length (packaging excluded) [mm]: 83

Width (packaging excluded) [mm]: 60

Height (packaging excluded) [mm]: 72

Weight: (packaging excluded) [kg]: 0.275
