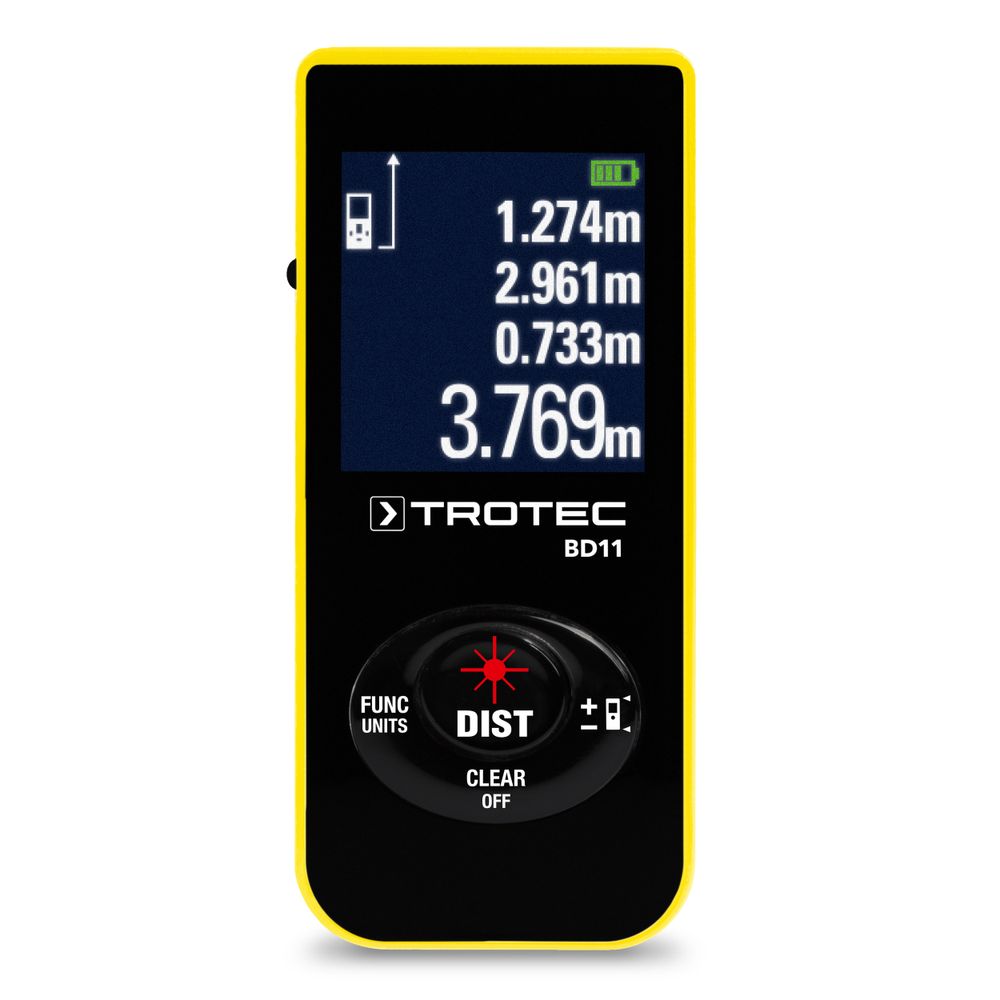

Trotec BD11 Distance meter (0.05~30m; ± 3 mm)

Distance measurement:

Min. measuring range | Distance measurement: 0.05

Min. measuring range [m]: 0.05

Max. measuring range [m]: 30

Min. measuring range [ft]: 0.17

Max. measuring range [ft]: 98

Resolution: 1 mm

Typical measuring tolerance: ± 3 mm

Laser:

Ø of the laser point at distance 10 m [mm]: 10

Ø of the laser point at distance 20 m [mm]: 12

Ø of the laser point at distance 30 m [mm]: 20

class: 2

output < [mW]: 1

Memory organisation: Recall of previous measurements: 10

Device control: Push buttons: ✓

Housing design: Plastics: ✓

Type of protection: IP54: ✓

Power supply:

Li-ion battery (integrated) 200mAh: ✓

Internal (battery): 1 x 3.7 V Li-ion battery integrated

Measurements per battery set: 2

Ambient conditions:

Operation - min. temperature [°C]: 0

Operation - max. temperature [°C]: 40

Storage - min. temperature [°C]: -20

Storage - max. temperature [°C]: 70
