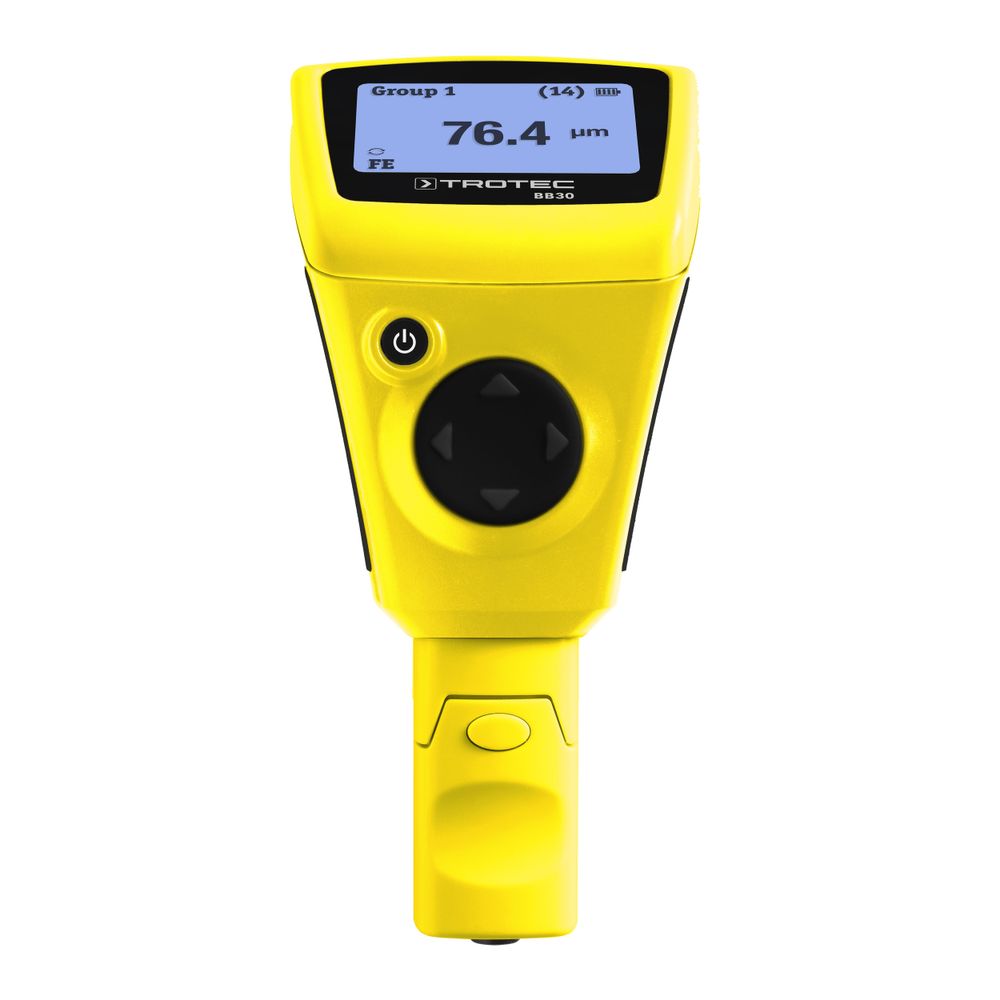

Trotec BB30 Coating Thickness Meter (0 - 2000 µm; ± 0.1 µm)

Layer thickness measurement:

Functional principle | Layer thickness: Magnetic induction, Turbulent flow

Material | Layer thickness: Ferromagnetic ground, Non-ferrous metal ground

Min. measuring range [µm]: 0

Max. measuring range [µm]: 2000

Accuracy: ±0.1 µm (at 0 µm up to 100 µm)

: ±1 µm (at 100 µm up to 1,000 µm)

: ±0.01 mm (at 1,000 µm up to 2,000 µm)

Tolerance | Non-ferrous metal ground Guaranteed tolerance with non-ferrous metal ground in the measuring range from 0 to 1,000 µm: (±2 % + 2) µm of measured value

Tolerance | Non-ferrous metal ground Guaranteed tolerance with non-ferrous metal ground in the measuring range from 1,000 to 2,000 µm: ±3.5 % µm of measured value

Tolerance | Ferromagnetic ground Guaranteed tolerance with ferromagnetic ground in the measuring range from 0 to 1,000 µm: (±2 % + 2) µm of measured value

Tolerance | Ferromagnetic ground Guaranteed tolerance with ferromagnetic ground in the measuring range from 1,000 to 2,000 µm: ±3.5 % µm of measured value

Minimum measuring surface with non-ferrous metal ground: Ø 5 mm

Minimum bending radius with non-ferrous metal ground: 3 mm

Critical primary layer thickness of non-ferrous metal ground: 0.3 µm

Minimum measuring surface with ferromagnetic ground: Ø 7 mm

Minimum bending radius of the measuring surface with ferromagnetic ground: 1.5 mm

Critical primary layer thickness of ferromagnetic ground: 0.5 µm

Memory organisation:

Internal flash memory: Up to 2,500 measured values

Recall of previous measurements: ✓

Display:

LCD: ✓

Monochrome: ✓

Device control:

Push buttons: ✓

Ambient conditions:

Operation - min. temperature [°C]: 0

Operation - max. temperature [°C]: 40

Operation – min. relative humidity [% r.F.]: 20

Operation - max. relative humidity [% r.F.]: 90

Dimensions:

Length (packaging excluded) [mm]: 114

Width (packaging excluded) [mm]: 27

Height (packaging excluded) [mm]: 54

Weight:

(packaging excluded) [kg]: 0.152
