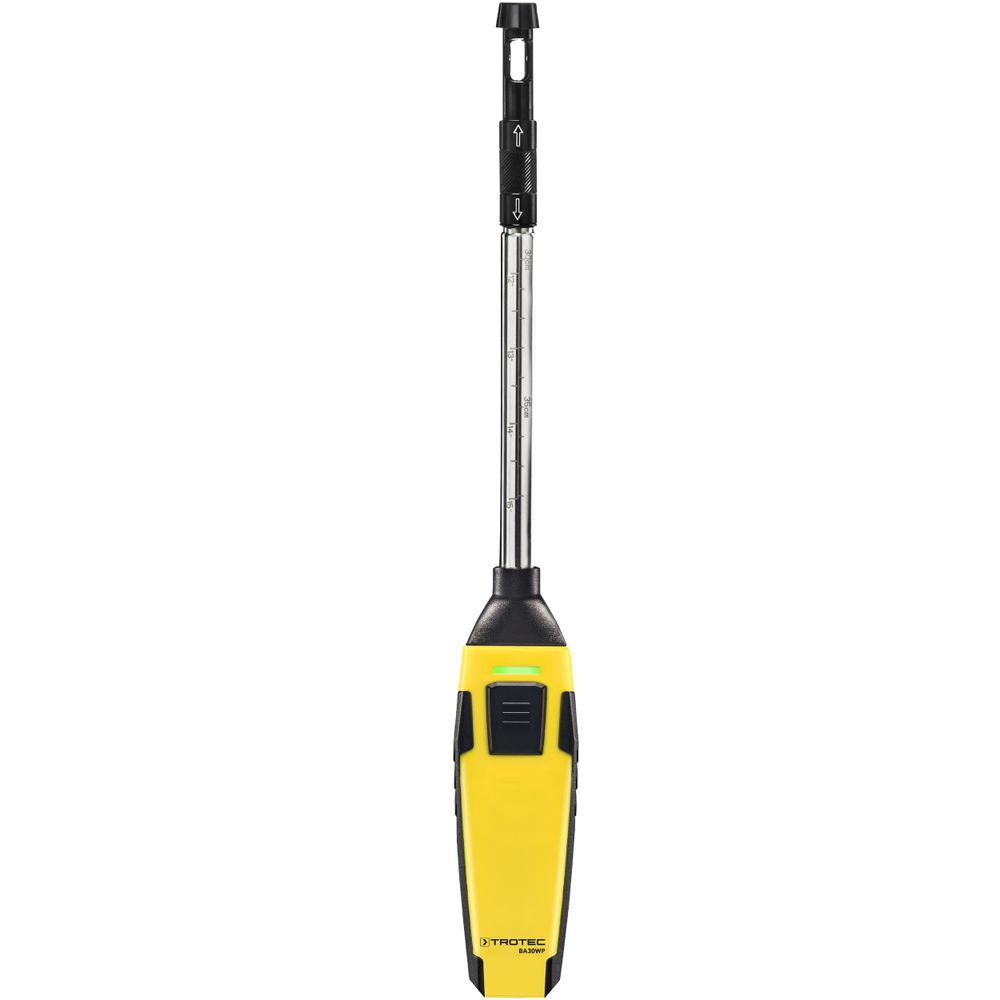

Trotec BA30WP Hot Wire Anemometer (0 - 30 m/s; -20 - 60 °C; 0 % - 99.9 %)

Air flow rate

Measuring range:

0 m/s to 30 m/s

0 km/h to 108 km/h

0 ft/min to 5900 ft/min

0 mph to 67 mph

0 kn to 58 kn

Accuracy:

± (5 % + 0.1) m/s at < 5 m/s

± (5 % + 0.3) m/s at ≥ 5 m/s

Resolution:

0.01 m/s

0.1 km/h

1 ft/min

0.1 mph

0.1 kn

Temperature

Measuring range: -20 °C to 60 °C / -4 °F to 140 °F

Accuracy: ± 0.8 °C (at -20 °C to 0 °C / -4 °F to 32 °F); ± 0.5 °C (at 0 °C to 60 °C / 32 °F to 140 °F)

Resolution: 0.1 °C / 0.1 °F

Humidity

Measuring range: 0 to 99.9 % RH

Accuracy: ± 3.5 % RH (with 20 to 80 % RH) ± 5 % RH (with 0 to 20 % RH and 80 to 100 % RH)

Resolution: 0.1 % RH

General technical data

Bluetooth standard: Bluetooth 4.0. Low Energy

Bluetooth frequency range: 2.4 GHz

Bluetooth max. transmission power: 10 dBm

Radio range: approx. 10 m (depending on measuring environment)

Storage temperature: -10 °C to 60 °C with < 90 % RH non-condensing

Operating temperature: -20 °C to 50 °C / -4 °F to 122 °F

Power supply: 3 x 1.5 V batteries. type AAA

Device switch-off: after approx. 3 minutes without active; Bluetooth connection

Protection type: IP40

Weight: 122 g

Telescopic probe: Length approx. 170 mm to 375 mm

Dimensions (length x width x height): 22 mm x 36 mm x 320/555 mm

Scope of delivery

• 1 x Device BA30WP

• 3 x 1.5 V battery AAA

• 1 x Wrist strap

• 1 x Quick guide
