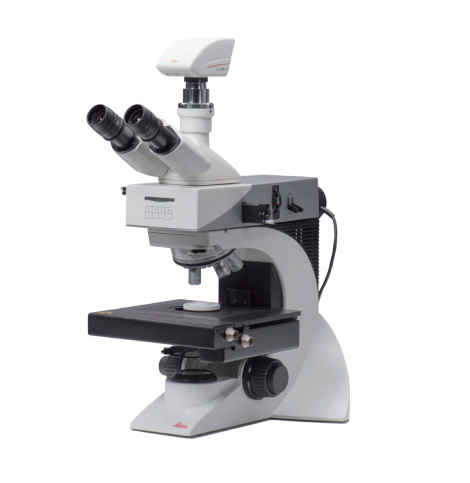

Trojan Leica DM2700M Advanced LED Illumination Upright Microscope

Stand: Robust metal stand

Infinity optical system:

Two-gear focusing mechanism (with top focus brake system, coarse/fine adjustment with 1-micron micrometer scale)

or three-gear focusing mechanism (with top focus brake system, coarse/medium/fine adjustment with 1-micron and 4-micron micrometer scales)

Both systems feature force-controlled coarse focusing and adjustable stage height stop mechanism

Stage Travel: 25 mm

Incident light:

Robust incident light axis with 4-position reflector turret, designed for brightfield, darkfield, differential interference contrast (DIC), polarization, and fluorescence observations

Objective Turret / Objectives:

5× BF / DF M32, 6× BF M25, and 7× BF M25 objective turrets

Accessories:

Optional magnification changing device (1×, 1.5×, 2×)

Fixed ergonomically designed stage (76 × 50 mm), with left-hand or right-hand operation, or rotating stage (76 × 50 mm)

Equipped with wear-resistant ceramic surface (standard configuration), enabling tasks that require stage supports and condenser holders

Optional stages for X, Y, and Z axis measurements are available

Transmitted Light:

LED illuminator with internal light intensity control

Compatible with built-in 32 mm diameter three-position filter holder

Suitable for wide-range condensers for incident light applications

Power Supply:

Stable universal power supply with an operating voltage range of 90–230 V

Features three optional objective turrets: BF/DF M32 microscope nosepiece can accommodate up to five objectives, while the BF/FLUO configuration supports up to six or seven objectives.

Suitable for samples up to 100 × 100 mm in size, such as metal sheets, semiconductor wafers, or printed circuit boards, with a maximum thickness of 80mm, for example, machined parts. Comprehensive testing programs can be used for monitoring.

TheMacroobjectivelensallowsyoutoviewa40mmsampleataglance, making it an ideal tool for quick positioning and comprehensive documentation.
